AIR POWER G5 EX

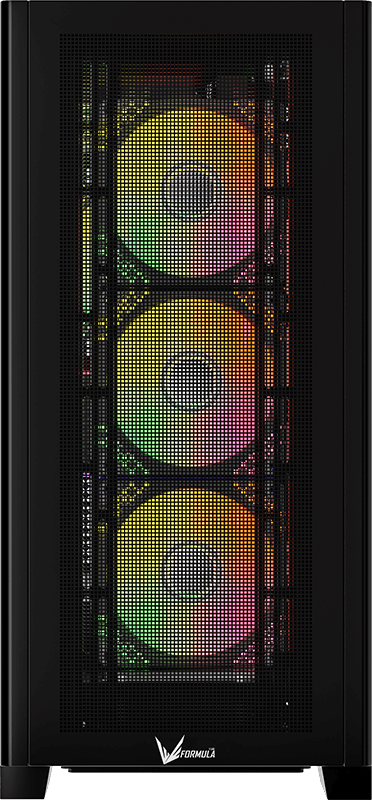

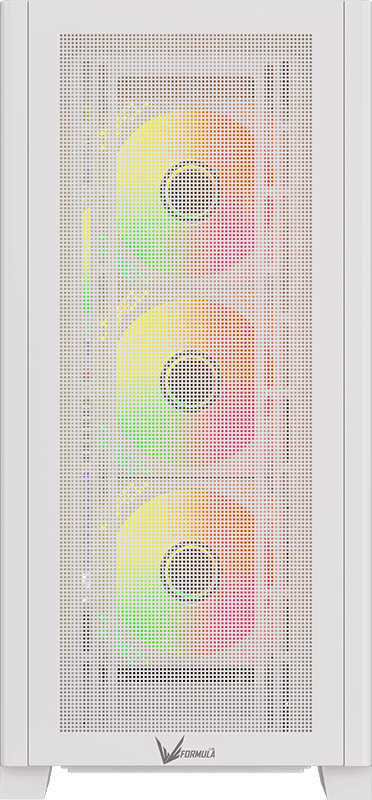

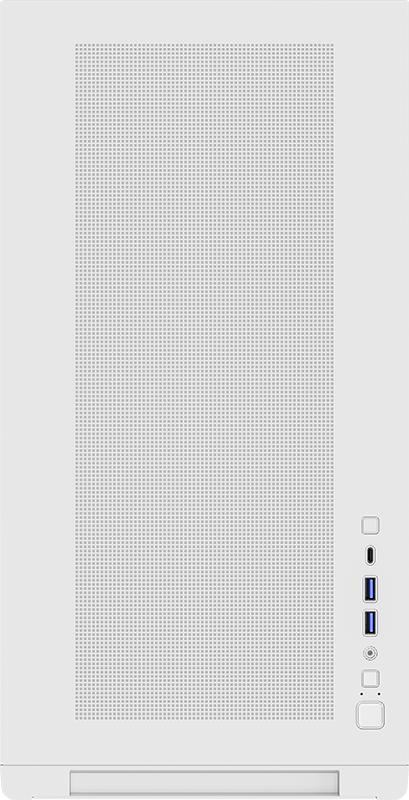

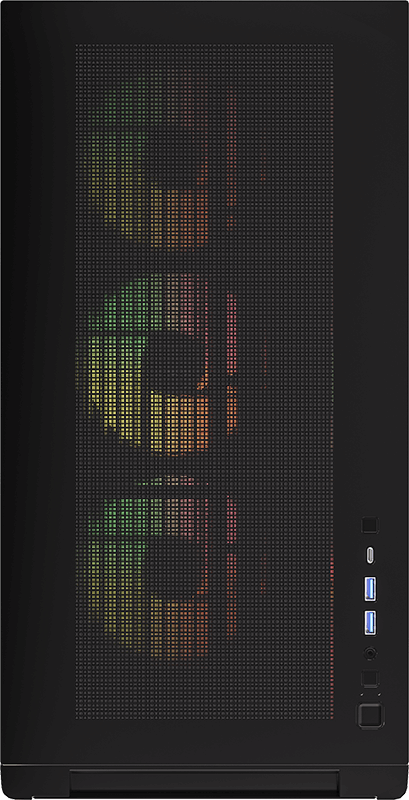

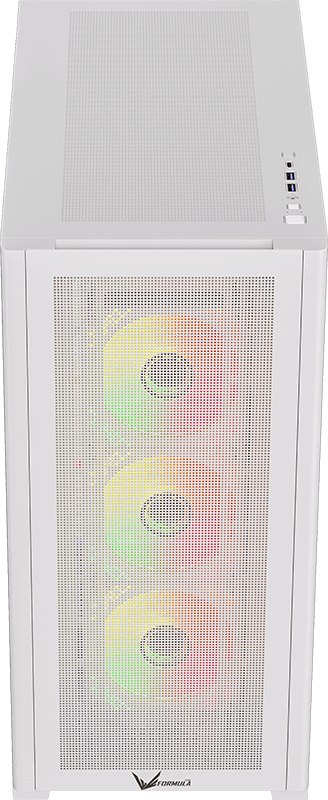

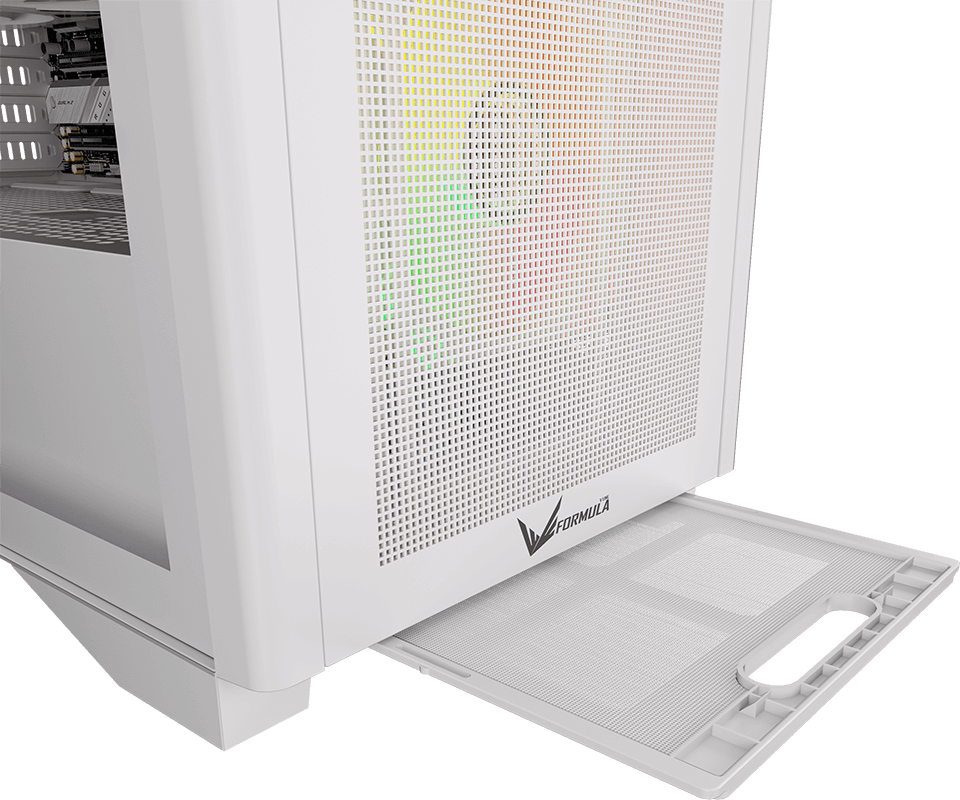

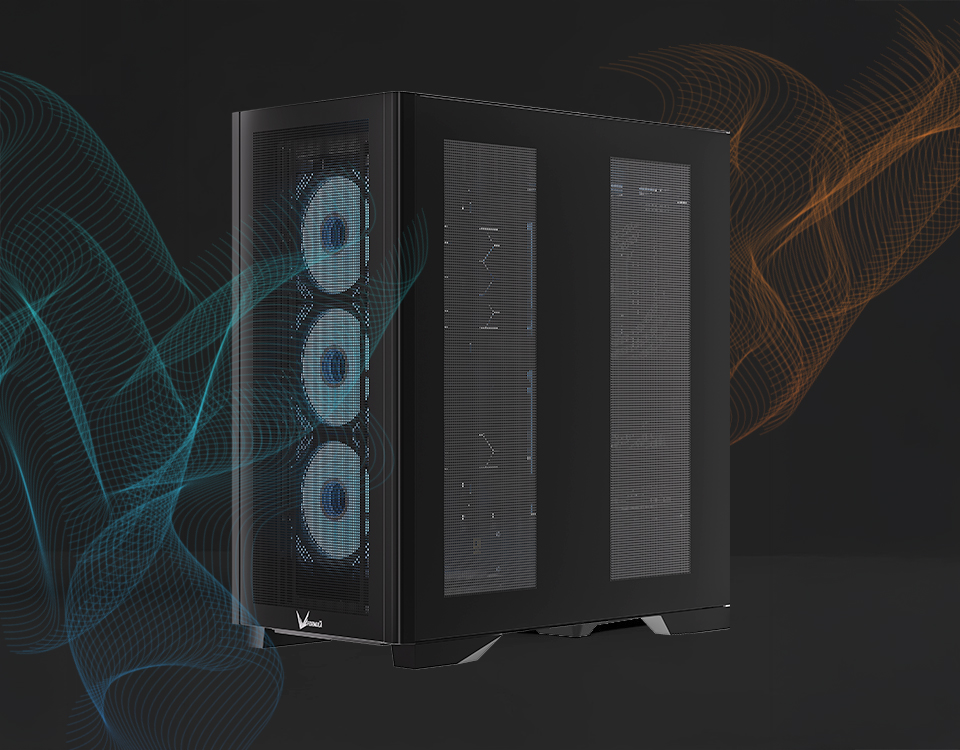

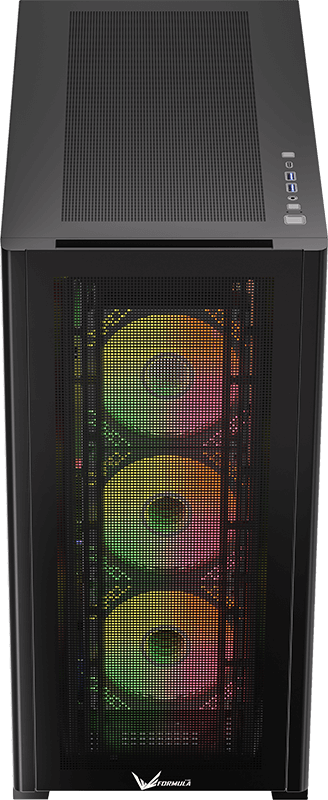

The perforated front panel design increases the airflow and superior cooling performance

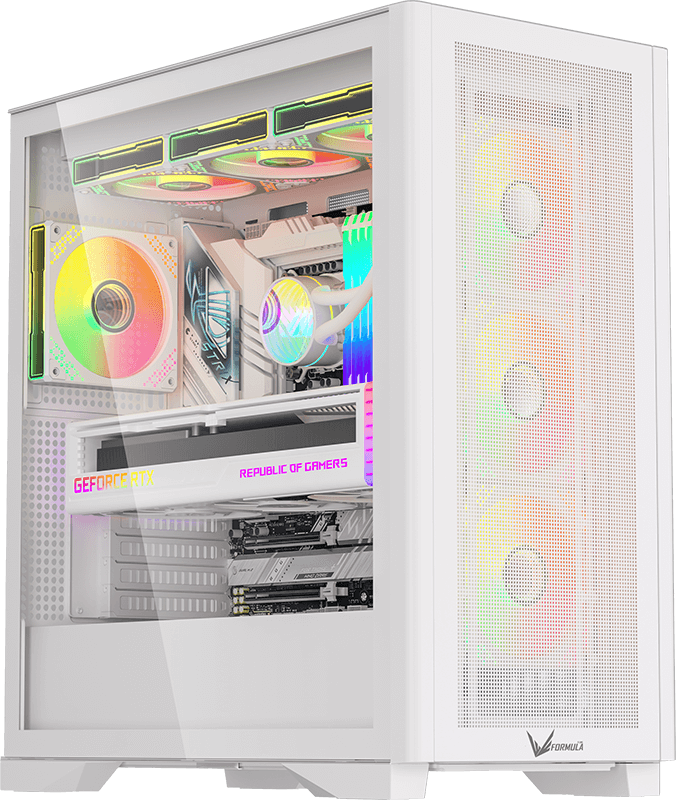

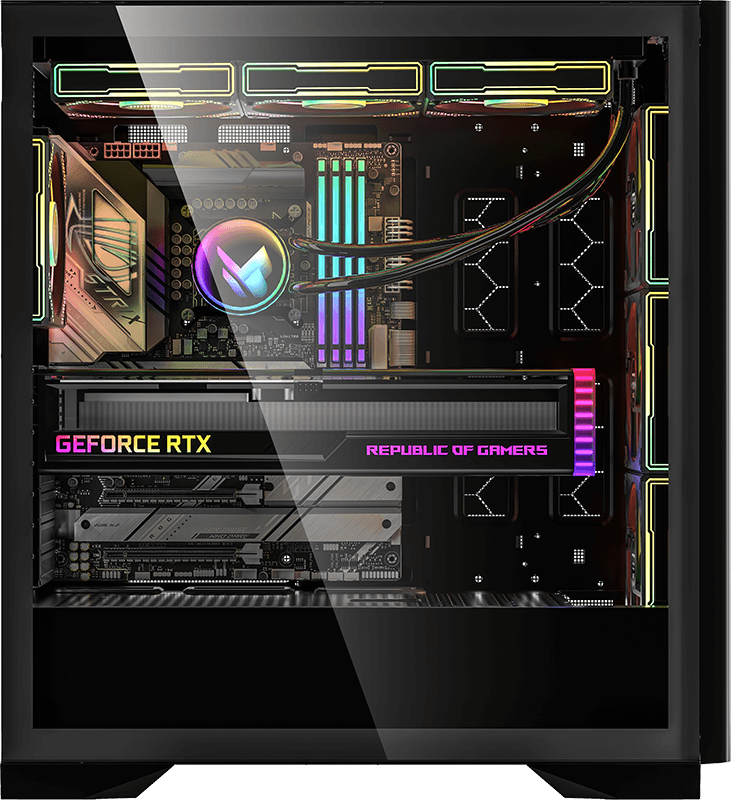

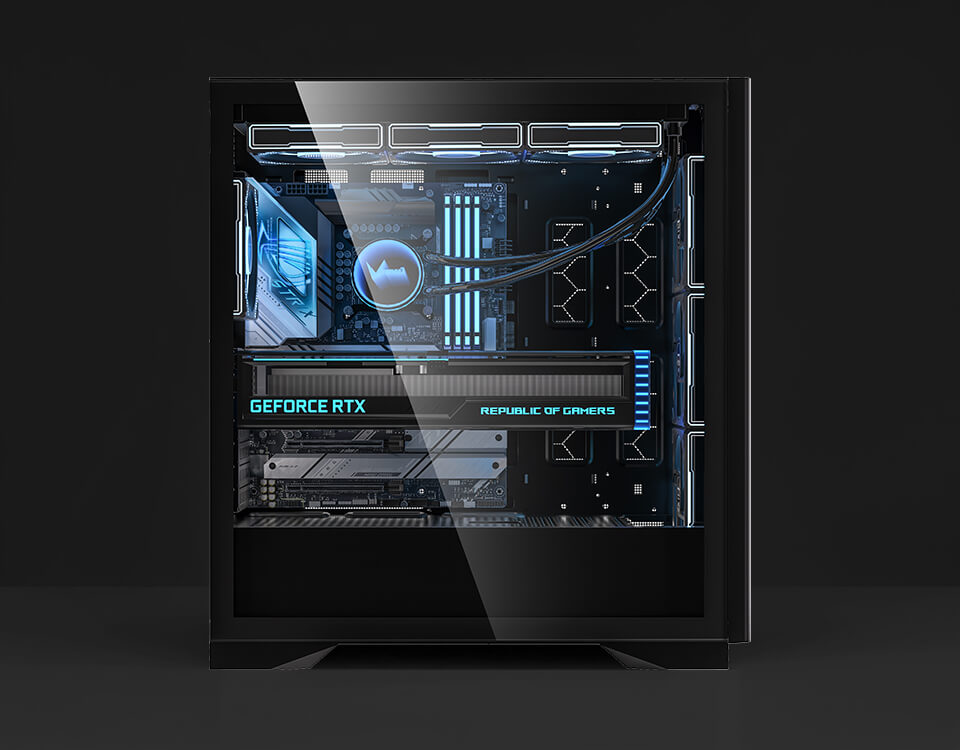

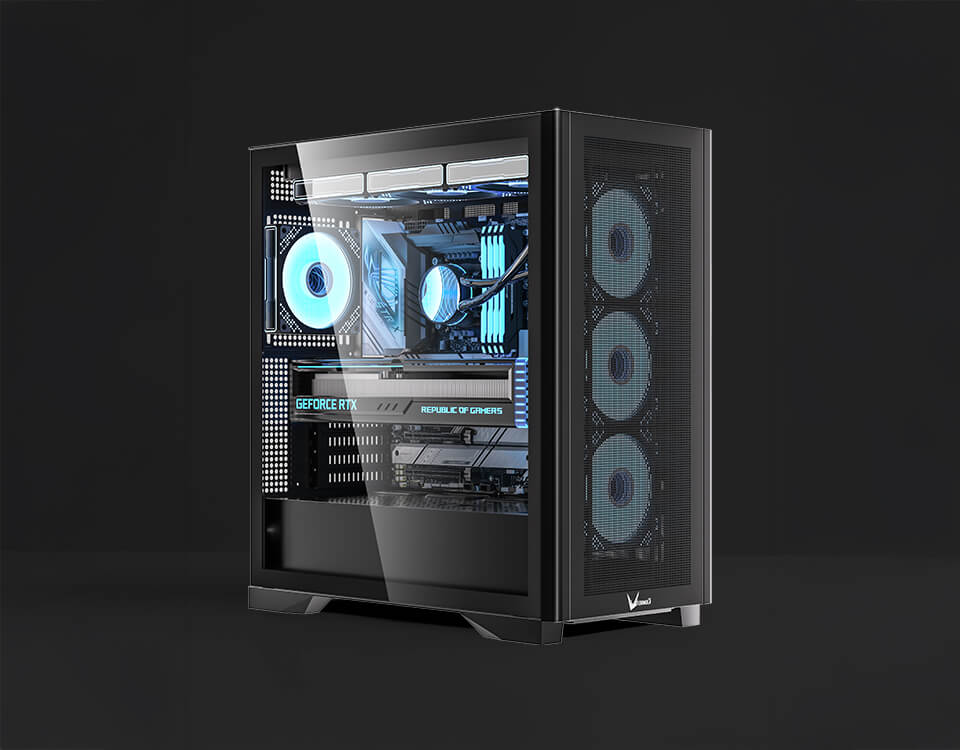

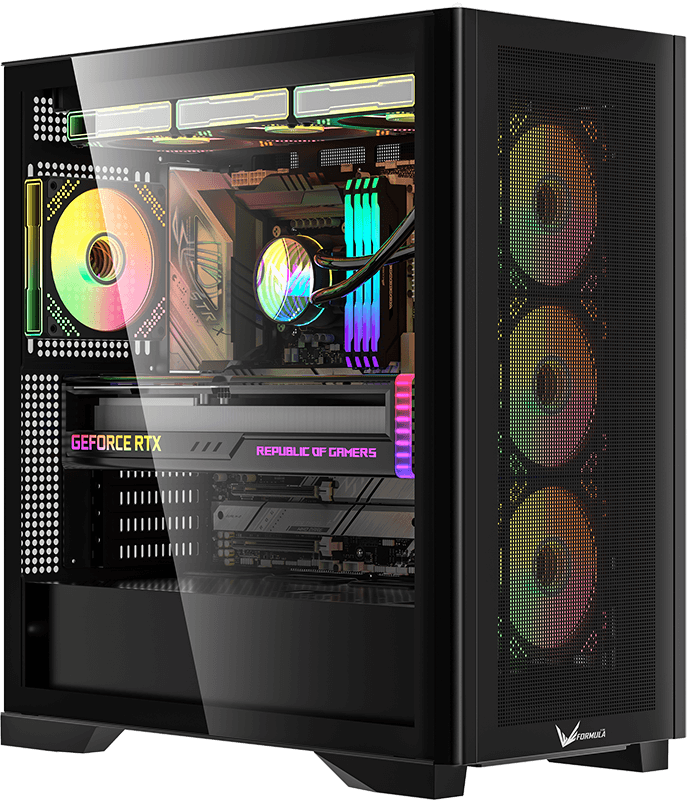

The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

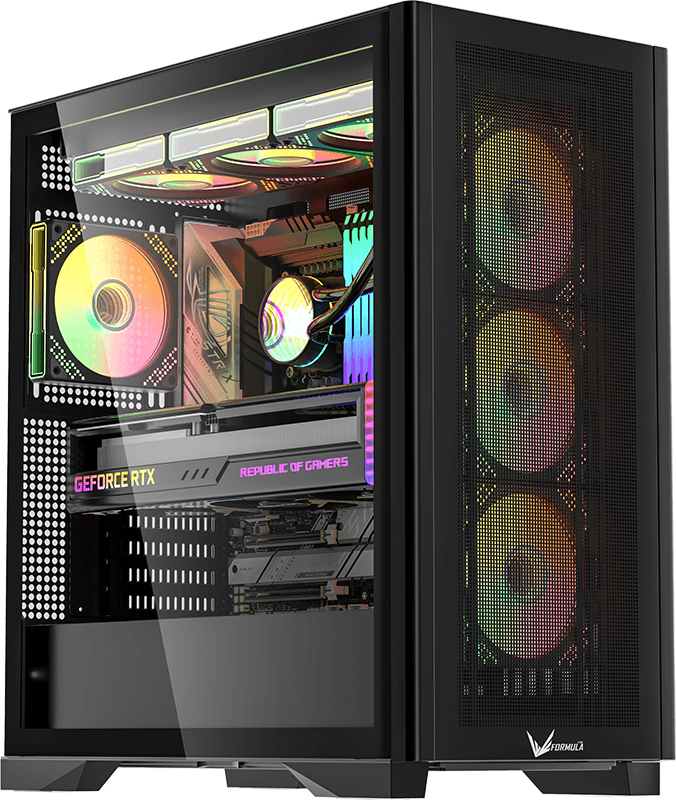

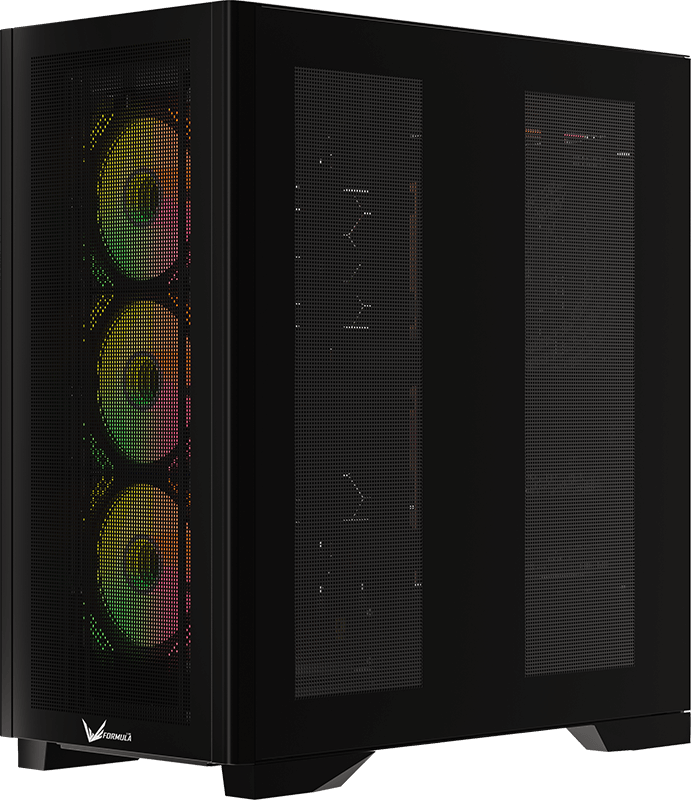

Black

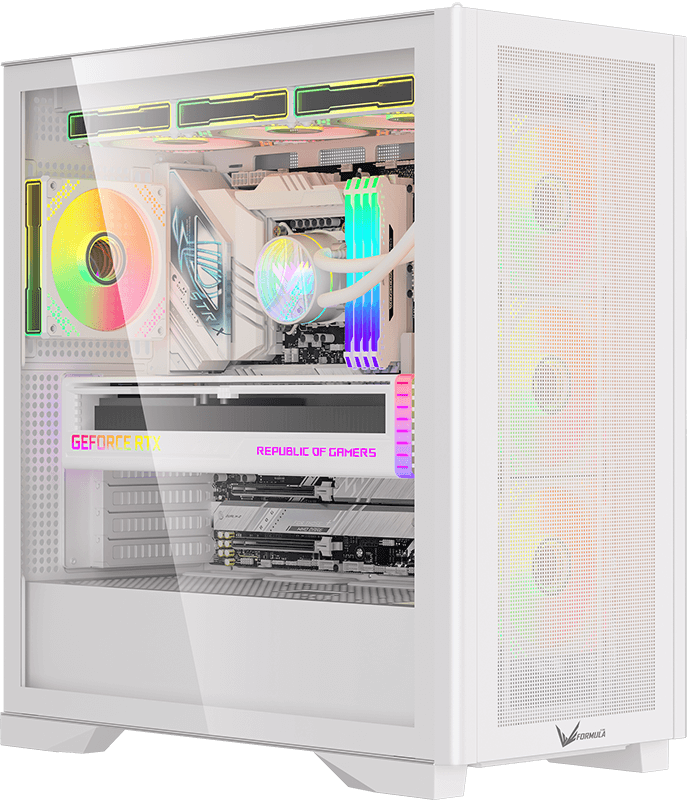

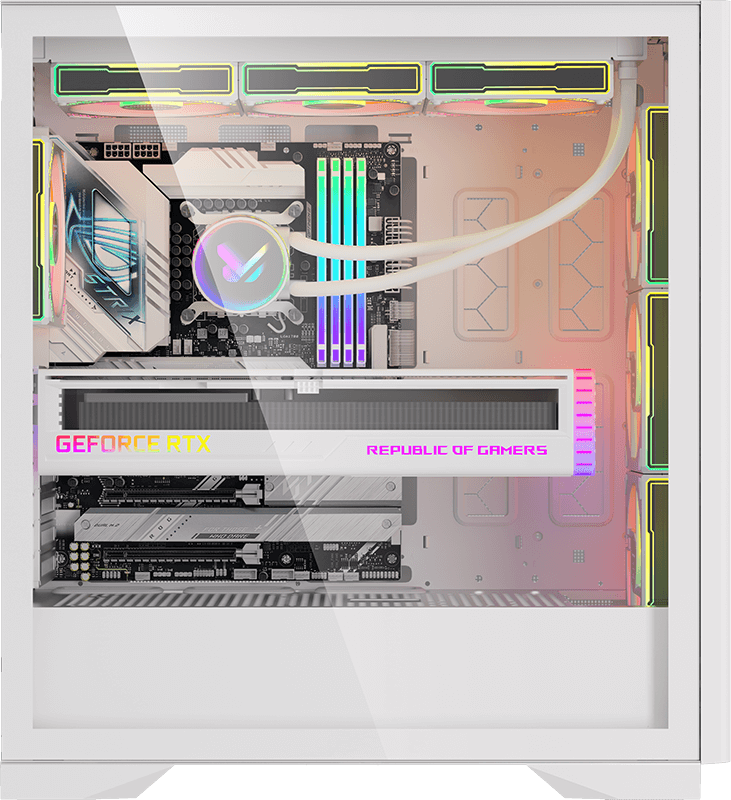

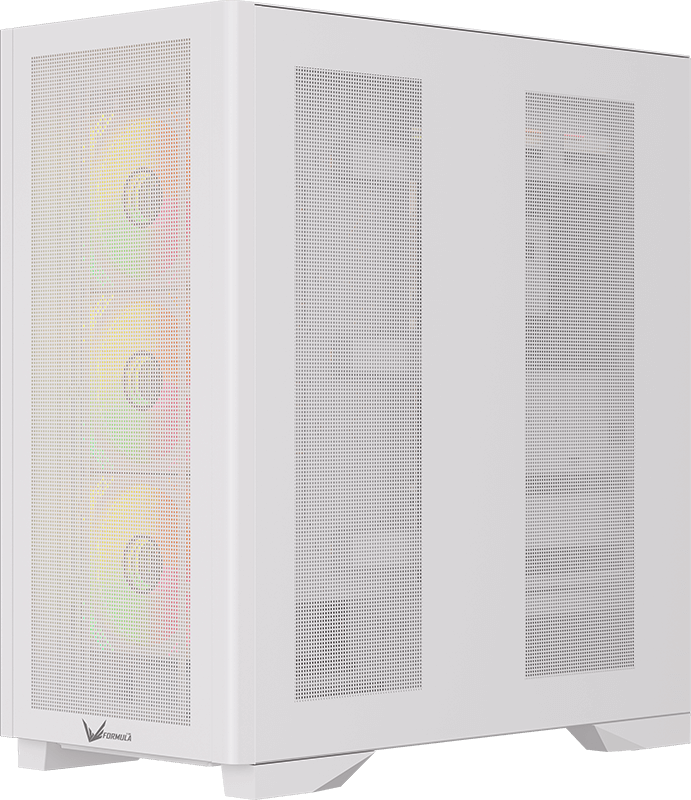

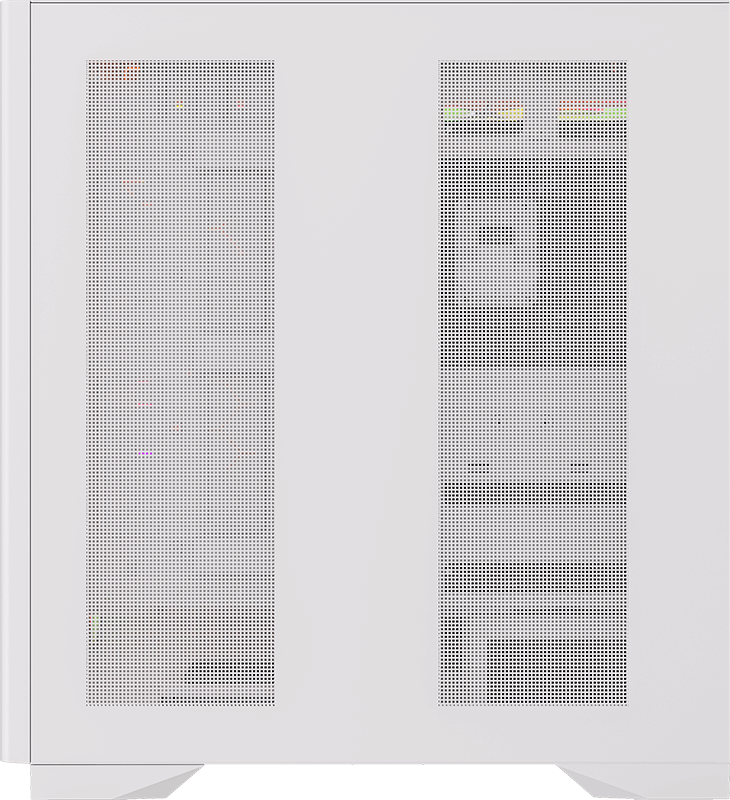

White
section-0 section-1 section-2 section-3 section-4 section-5 section-6 section-7

Specifications

  • Model AIR POWER G5 EX
    Case Type Mid Tower
    Color Black | White
    Body Material SPCC
    Steel Thickness 0.8mm

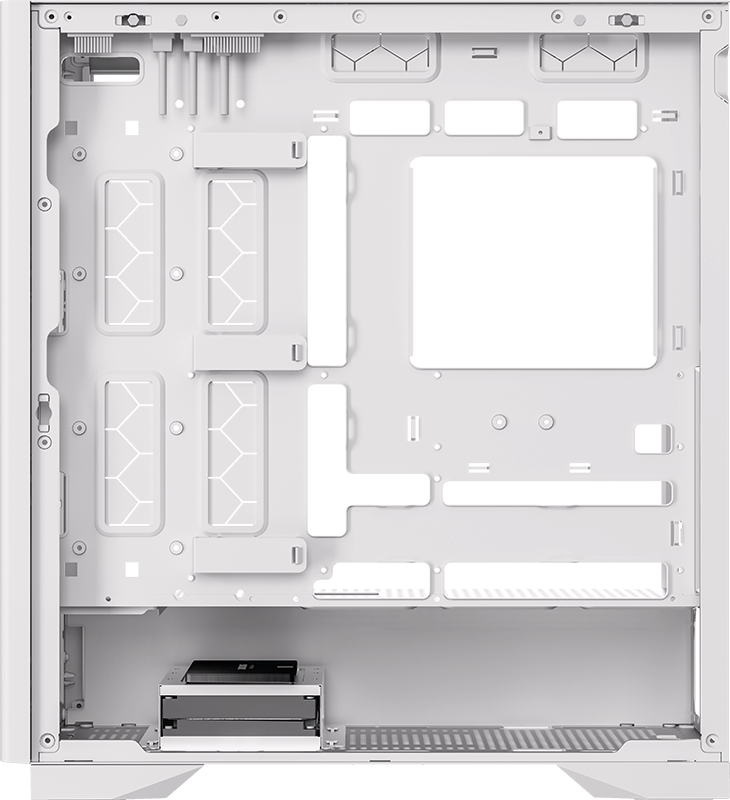

    Motherboards EATX/ATX/micro ATX/mini-ITX
    Case Dimensions 475 x 235 x 501mm
    3.5” Drive Bays 2
    2.5” Drive Bays 3
  • Expansion Slots 7
    GPU Clearance Supports GPU up to 435mm
    CPU Cooler Clearance Supports CPU cooler up to 185mm
    Switch control 1
    Air Cooling Front: 3 x 120mm Fan Max.
    (3 x 120mm Cosmic Fans Included)
    Rear: 1 x 120mm Fan Max.
    (1 x 120mm Cosmic Fan Included)
    Liquid Cooling Front: 360/420mm Max.
    Top: 240/360mm Max.

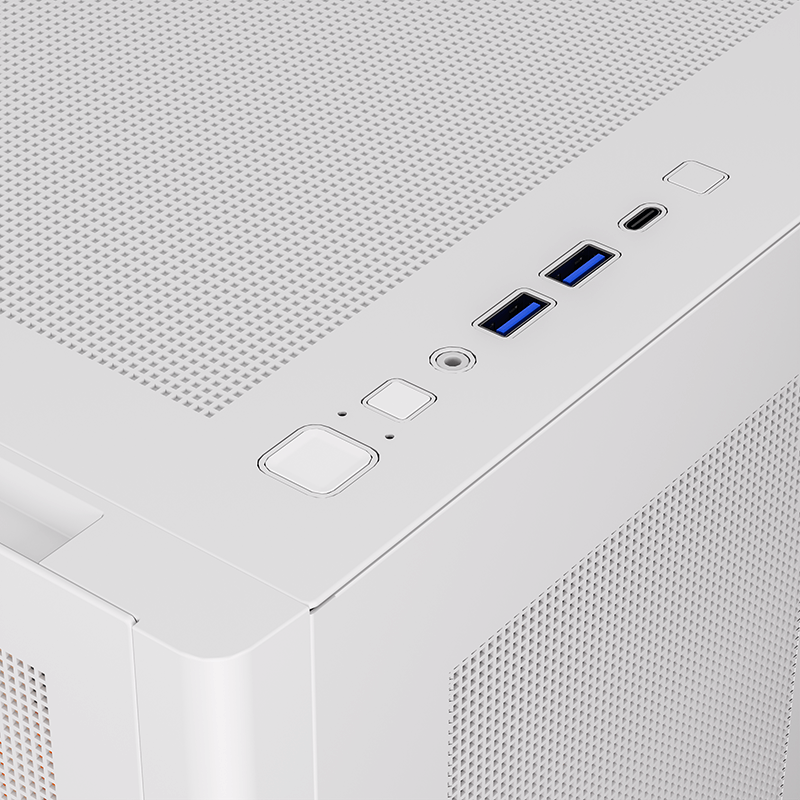

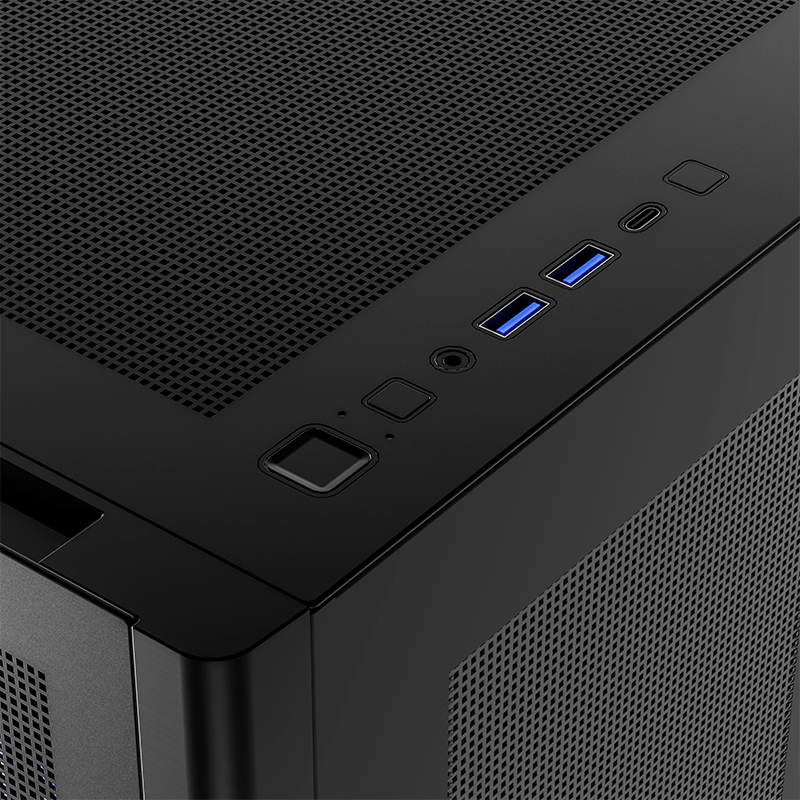

    I/O Ports TYPE-C x 1, USB3.0 x 2, HD Audio
    Power Supply ATX PSU
