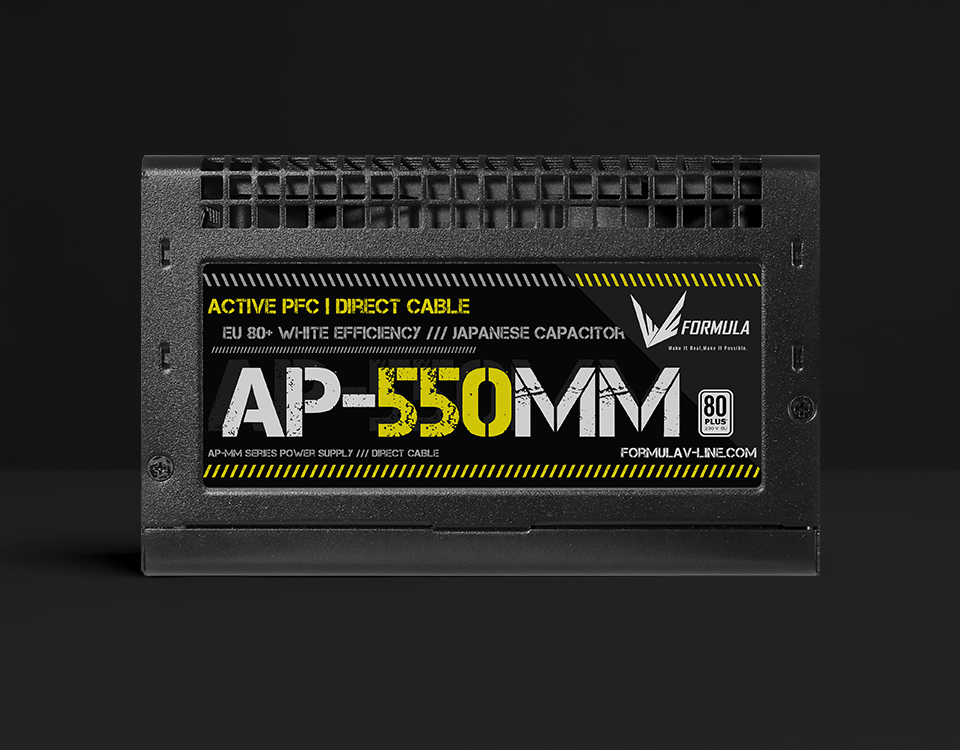

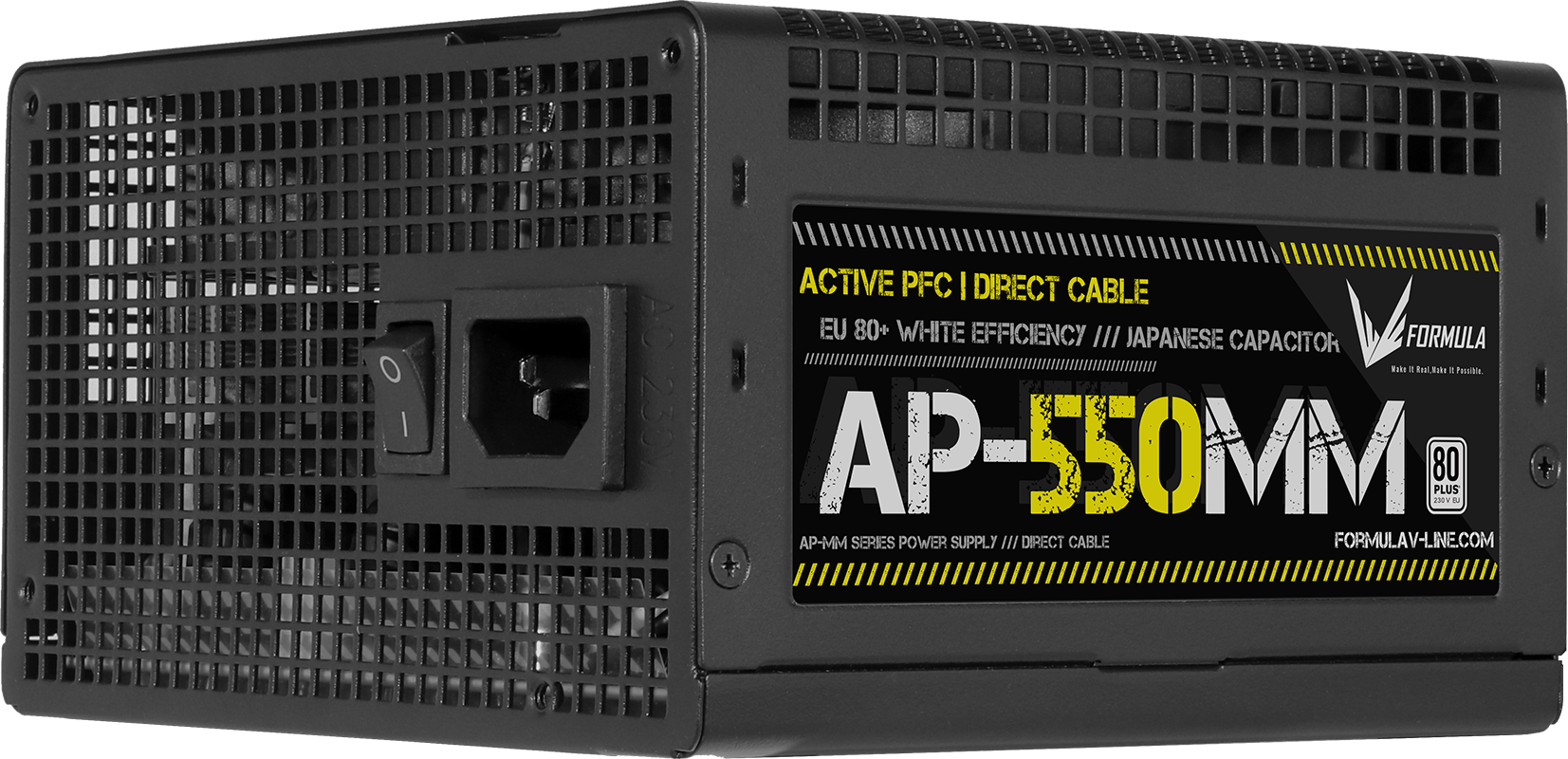

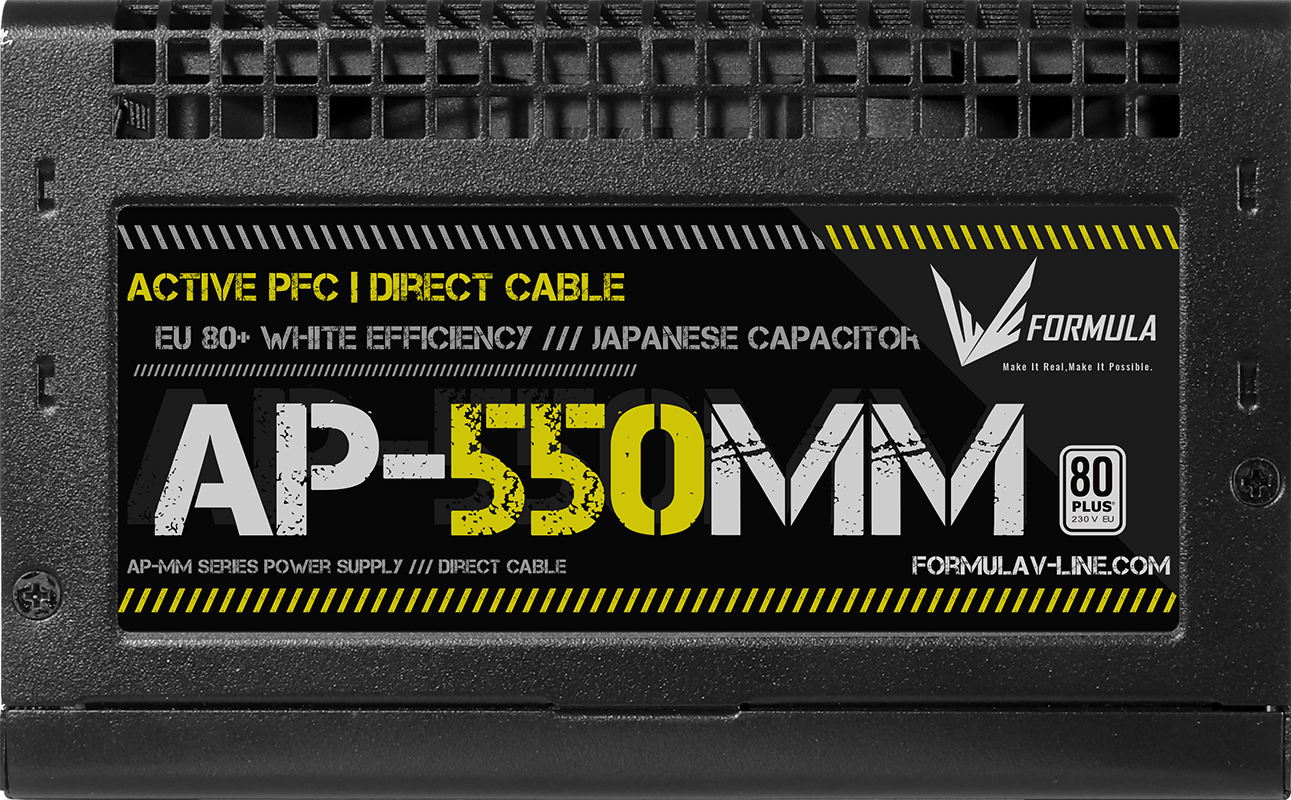

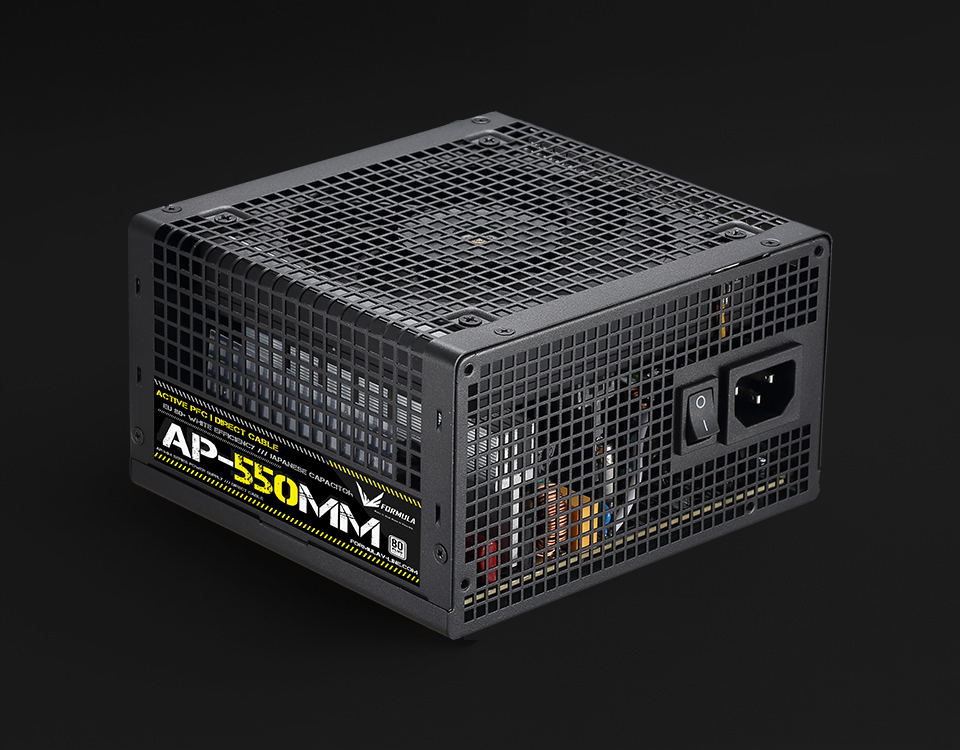

AP-550MM

Experience reliable and efficient power delivery with our 80 PLUS 230V EU Standard PSU, 「AP-550MM」.

Designed to maximize energy efficiency, this PSU ensures stable performance for your system while minimizing wasted power.

With its high-quality build and adherence to industry standards, it provides the necessary power for your components, contributing to a smoother and more reliable computing experience.



– Japanese Capacitor
– ERP 2013 Lot 6
– 80 PLUS 230V EU Standard
– Silent 12CM Hydro bearing fan w/ smart auto thermal control
– Reliable safety protection, OVP, UVP, OPP, SCP
– Elegant and enhanced airflow casing design
– Sufficient black flat cable length and connectors

section-0 section-1 section-2 section-3 section-4 section-5 section-6 section-7

Specifications

  • AC INPUT
    AC 200~240VAC,5A,50Hz
    DC OUTPUT
    +3.3V +5V +12V -12V +5VSB
    16A 18A 41.25A 0.3A 2.5A
    120W 495W 3.6W 12.5W
    TOTAL COMBINE POWER
    550W
  • Cable SPEC 20+4P(500mm)Black-Flat x1
    P8(4+4)(600mm)Black-Flat x1
    P8(6+2)toP8(6+2)(550mm)Black-Flat x1
    SATA(450mm) / SATA(150mm)/SATA(150mm)/MOLEX(150mm)Black-Flat x2
