APMM-600BD

Experience reliable and efficient power delivery with our 80 PLUS 230V EU Bronze PSU, 「APMM-600BD」. Offering top-tier protection and outstanding performance at an unbeatable price, the APMM-BD series is ideal for DIY PC builders seeking a power supply loaded with features without overspending.
The APMM-600BD is 80Plus Bronze 230V EU Certified, delivering up to 88%+ efficiency for optimized power performance.

– Japanese Capacitor
– ATX 3.1 Ready: Embrace the Future
- 80Plus Bronze 230V EU Certified
- Silent 12CM Hydro bearing fan w/ smart auto thermal control - Reliable safety protection, OVP, UVP, OPP, SCP
- Elegant and enhanced airflow casing design
- Sufficient black flat cable length and connectors

section-0 section-1 section-2 section-3 section-4 section-5 section-6

Specifications

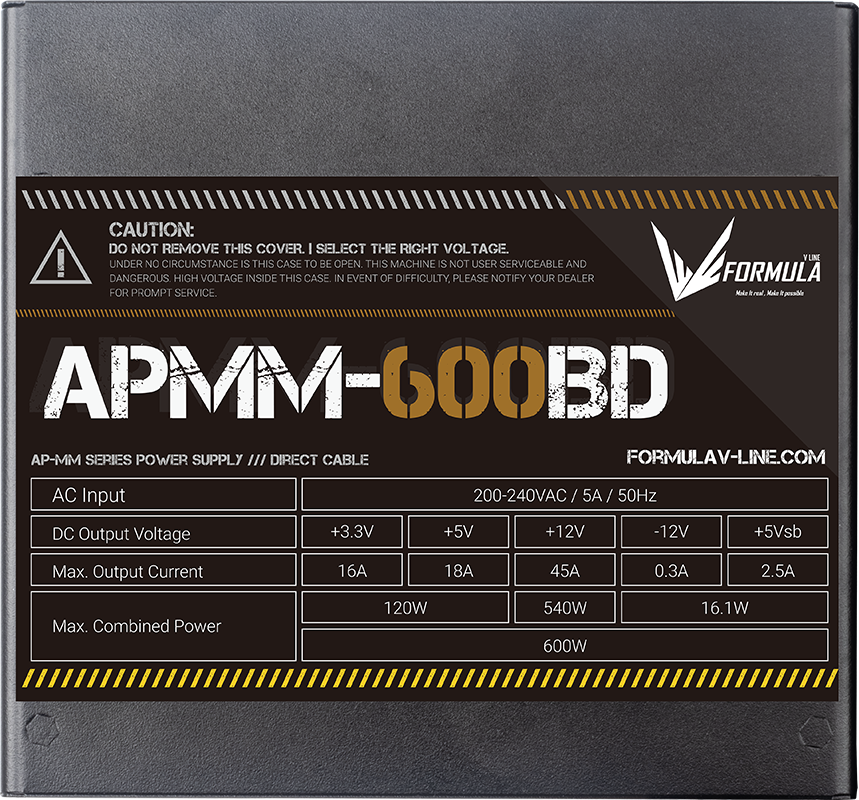

  • AC INPUT
    200-240VAC / 5A / 50Hz
    DC OUTPUT
    +3.3V +5V +12V -12V +5VSB
    16A 18A 45A 0.3A 2.5A
    120W 540W 16.1W
    TOTAL COMBINE POWER
    600W
  • Cable SPEC 20+4P (500mm) x1
    P8(4+4) (600mm) to P(4+4) (150mm) x1
    P8(6+2) to P8(6+2) (550mm) x2
    PCIe 5.1 H++ 12V-2X6 12VHPWR 16 Pin (550mm, 450W) x1
    IDE(500mm) / SATA(150mm) / SATA(150mm) x1
    SATA(500mm) / SATA(150mm)+IDE(150mm) x2
