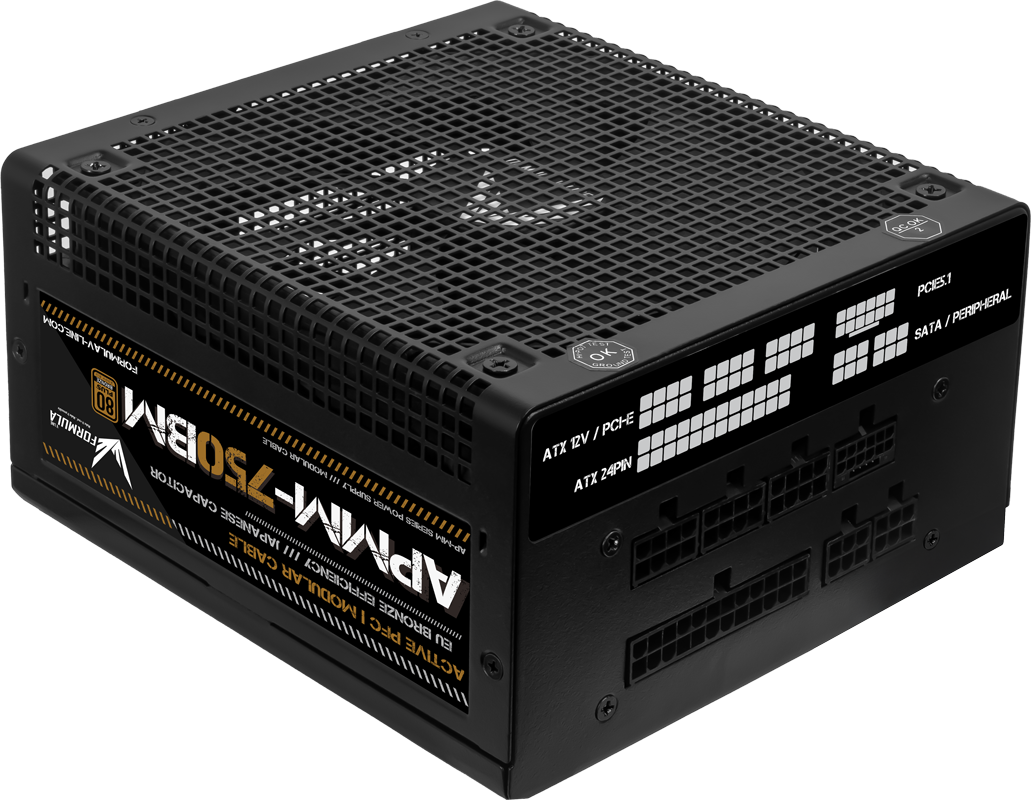

APMM-750BM

Experience reliable and efficient power delivery with our 80 PLUS 230V EU Bronze FULLY MODULAR PSU, 「APMM-750BM」.

Offering top-tier protection and outstanding performance at an unbeatable price, the APMM-750BM series is ideal for DIY PC builders seeking a power supply loaded with features without overspending.

The APMM-750BM is 80Plus Bronze 230V EU Certified, delivering up to 88%+ efficiency for optimized power performance.

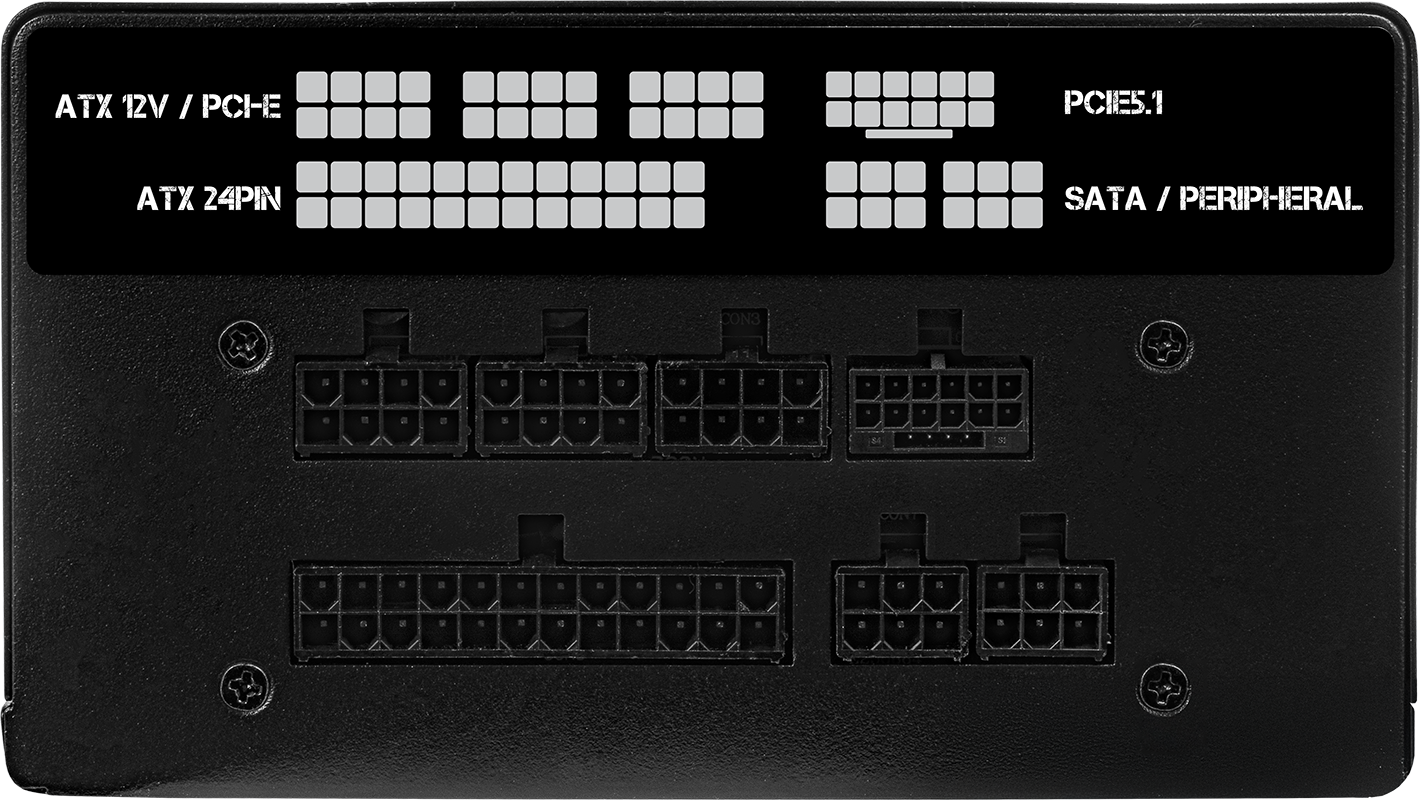

– The fully modular design enables streamlined cable management and enhanced airflow.

– Japanese Capacitor

– ATX3.1 & PCIe5.1 Ready: Embrace the Future

– Japanese Capacitor

– 80Plus Bronze 230V EU Certified

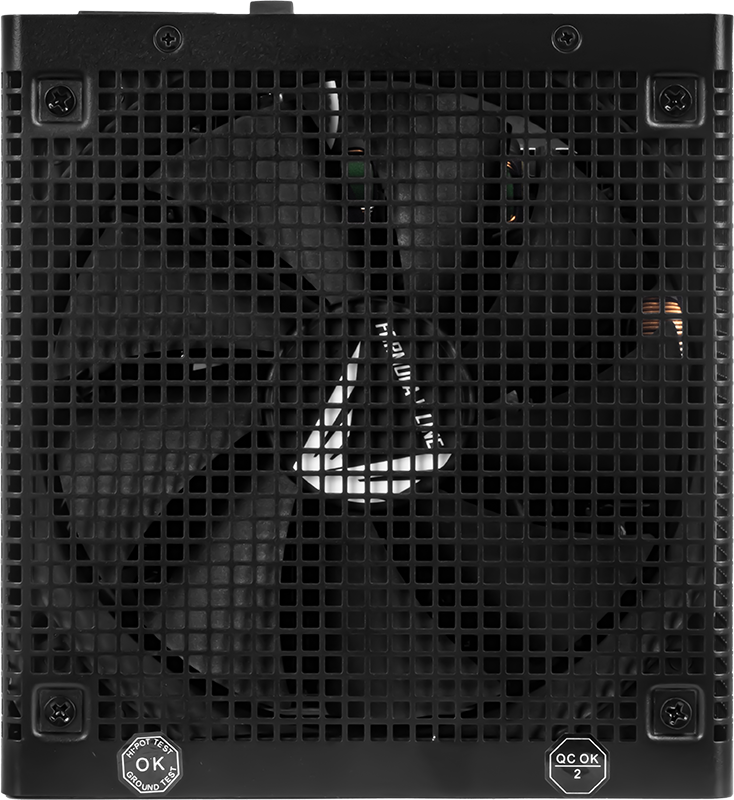

– Silent 14CM Hydro bearing fan w/ smart auto thermal control

– Reliable safety protection, OVP, UVP, OPP, SCP

– Elegant and enhanced airflow casing design

– Sufficient black flat cable length and connectors

section-0 section-1 section-2 section-3 section-4 section-5 section-6

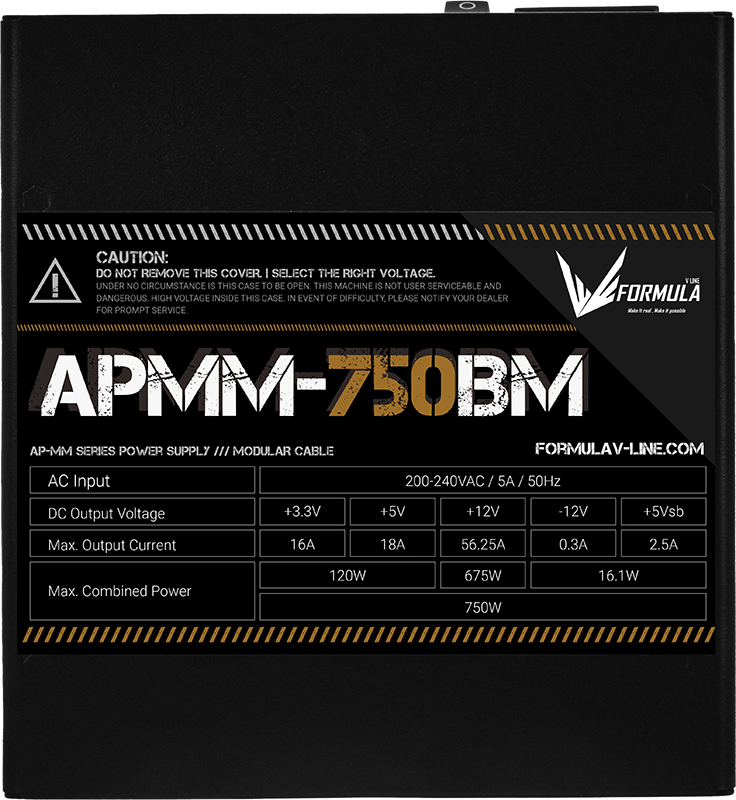

Specifications

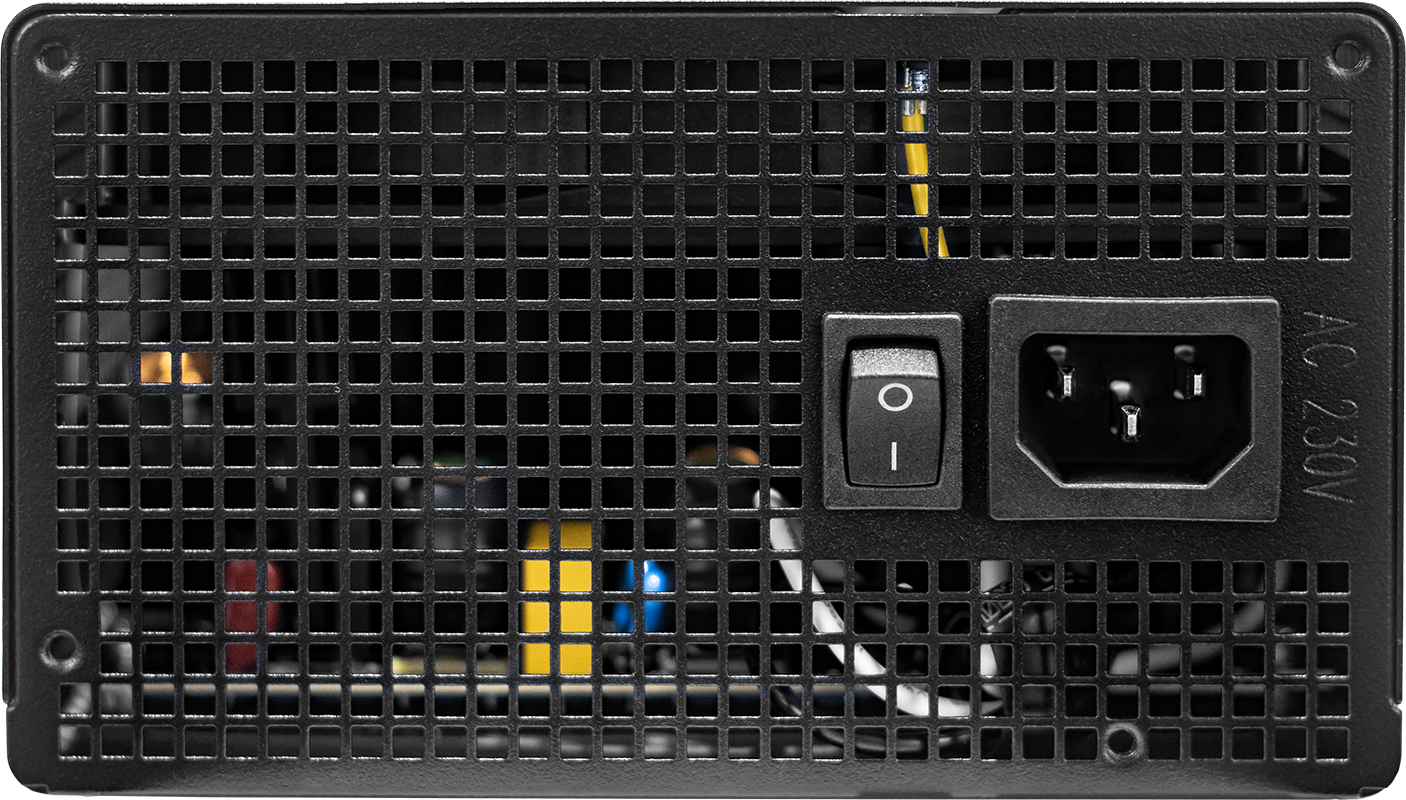

  • AC INPUT
    200-240VAC / 5A / 50Hz
    DC OUTPUT
    +3.3V +5V +12V -12V +5VSB
    16A 18A 56.25A 0.3A 2.5A
    120W 675W 16.1W
    TOTAL COMBINE POWER
    750W
  • Cable SPEC 20+4P(500mm) x1
    P8(4+4)(600mm) x1
    P8(6+2)toP8(6+2)(550mm) x2
    PCIe 5.1 H++ 12V-2X6 12VHPWR 16 Pin (550mm, 600W) x1
    SATA(500mm)+SATA(150mm)+SATA(150mm)+IDE(150mm) x1
    SATA(500mm)+SATA(150mm)+IDE(150mm)+IDE(150mm) x1
