APMM-850GM

Experience reliable and efficient power delivery with our 80Plus Gold Fully Modular PSU, 「APMM-850GM」.

Offering top-tier protection and outstanding performance at an unbeatable price, the AP-GM series is ideal for DIY PC builders seeking a power supply loaded with features without overspending.

The APMM-850GM is 80Plus Gold 230V EU Certified, delivering up to 90%+ efficiency for optimized power performance.

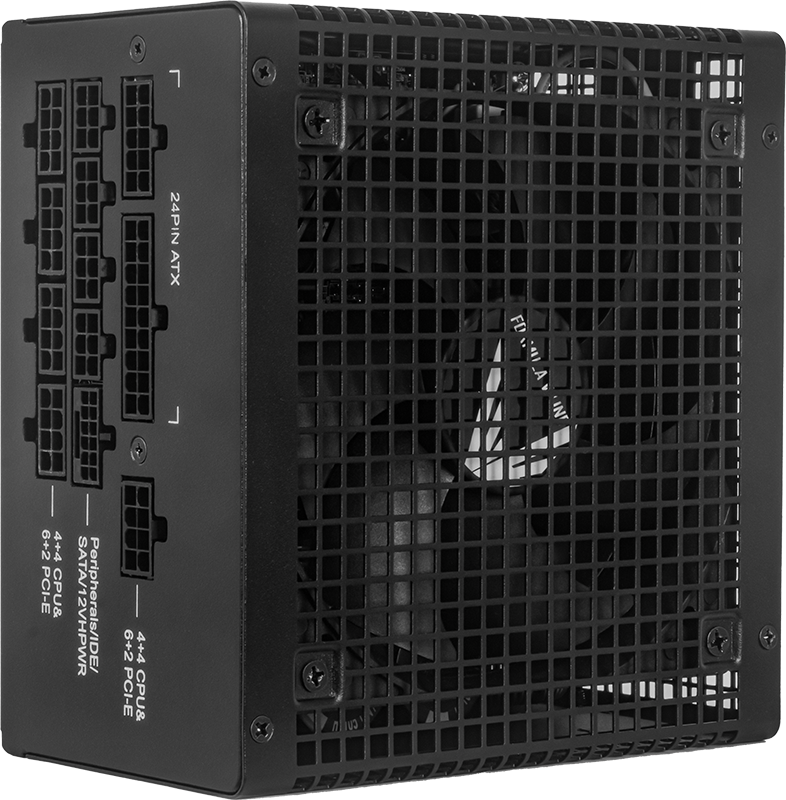

– The fully modular design enables streamlined cable management and enhanced airflow.

– Japanese Capacitor

– ATX3.1 & PCIe5.1 Ready: Embrace the Future

– ERP 2013 Lot 6
– 80Plus Glod 230V EU Certified
– Silent 14CM Hydro bearing fan w/ smart auto thermal control
– Reliable safety protection, OVP, UVP, OPP, SCP
– Elegant and enhanced airflow casing design
– Sufficient black flat cable length and connectors

section-0 section-1 section-2 section-3 section-4 section-5 section-6

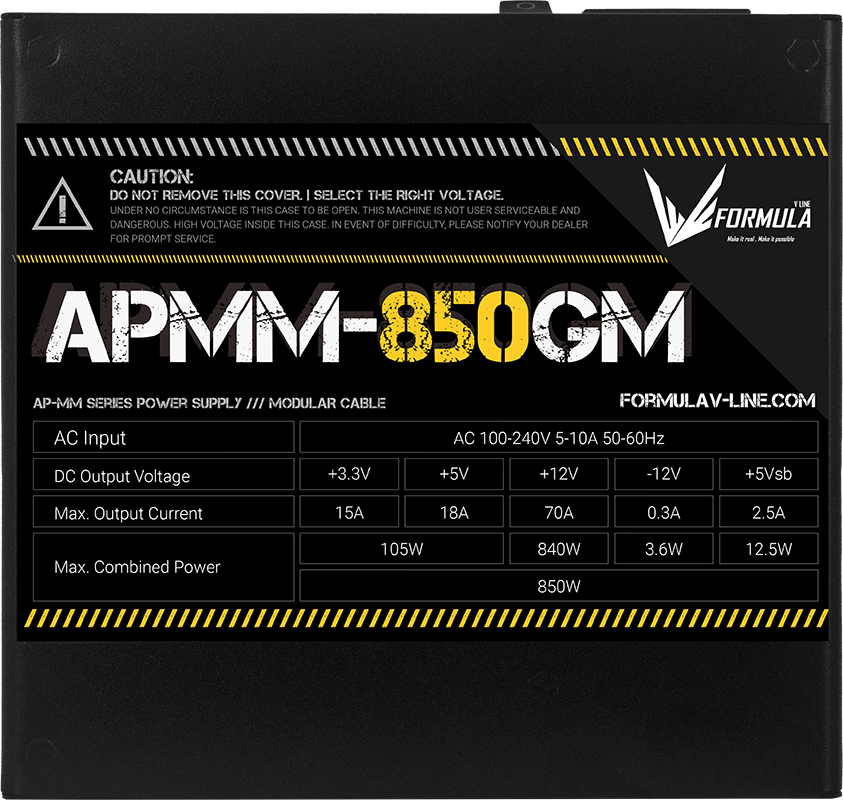

Specifications

  • AC INPUT
    AC 100-240V 5-12.5A 50-60Hz
    DC OUTPUT
    +3.3V +5V +12V -12V +5VSB
    15A 18A 70A 0.3A 2.5A
    105W 840W 3.6W 12.5W
    TOTAL COMBINE POWER
    850W
  • Cable SPEC 20+4P(600mm)Black flat cable x1
    P8(4+4)(650mm)Black flat cable x2
    P8(6+2)toP8(6+2)(600mm)Black flat cable x2
    PCIe 5.1 H++ 12V-2X6 12VHPWR 16 Pin (730mm, 600W) x1
    SATA(500mm) / SATA(150mm)/SATA(150mm)/SATA(150mm)Black flat cable x2
    IDE(500mm)/IDE((150mm)/IDE(150mm)/IDE(150mm)Black flat cable x1

Downloads
