CRYSTAL Z9

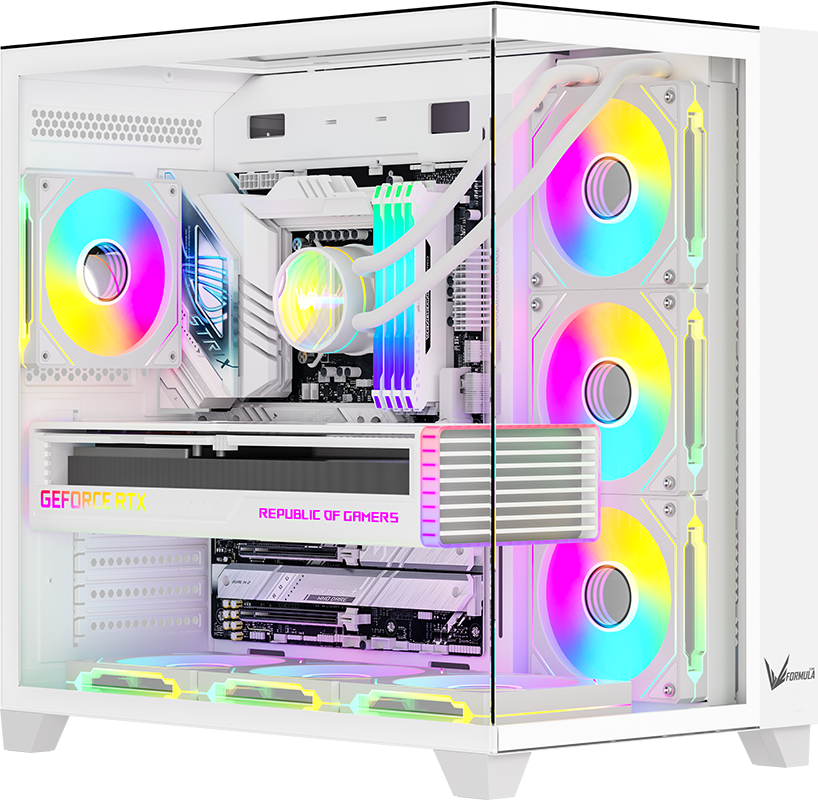

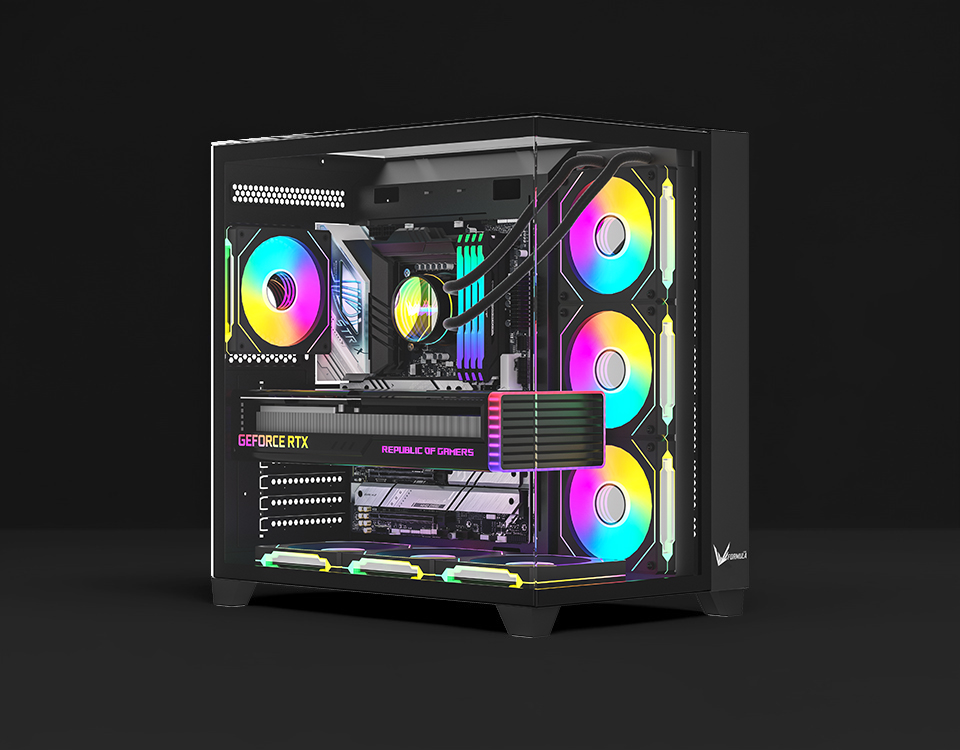

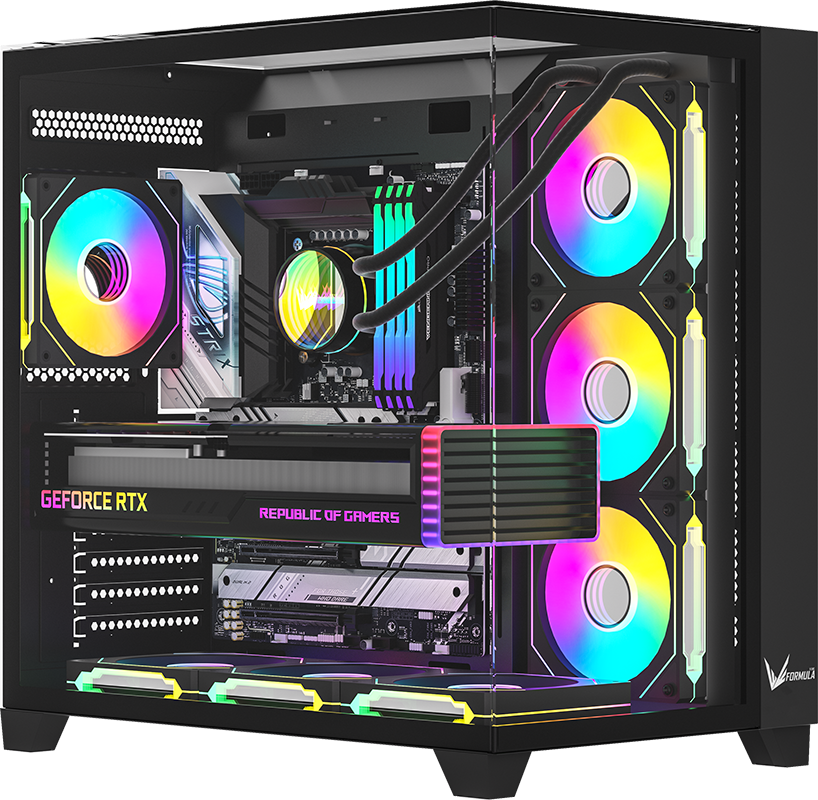

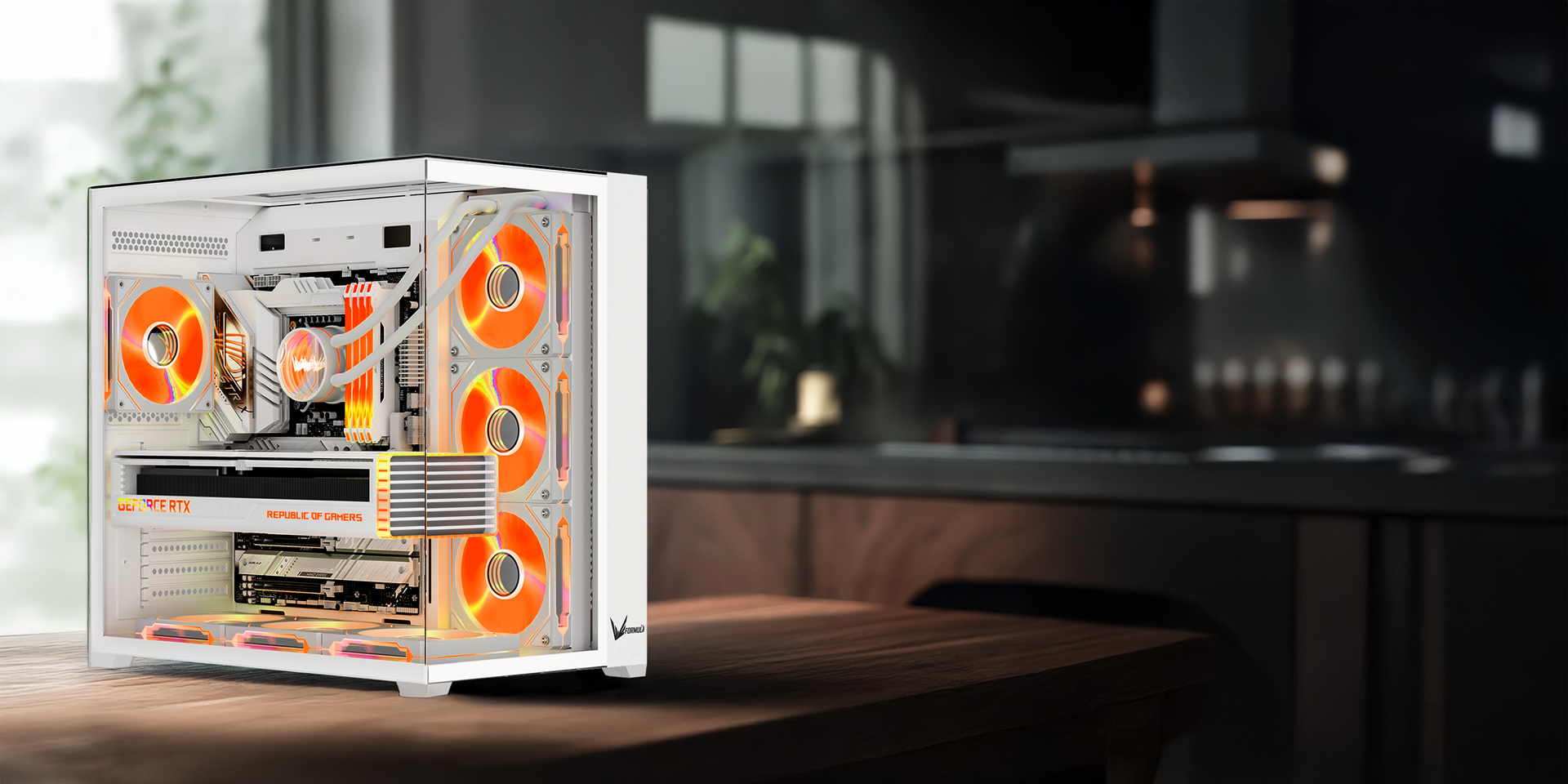

– 270-degree frameless panoramic design
– Superior Cooling Performance

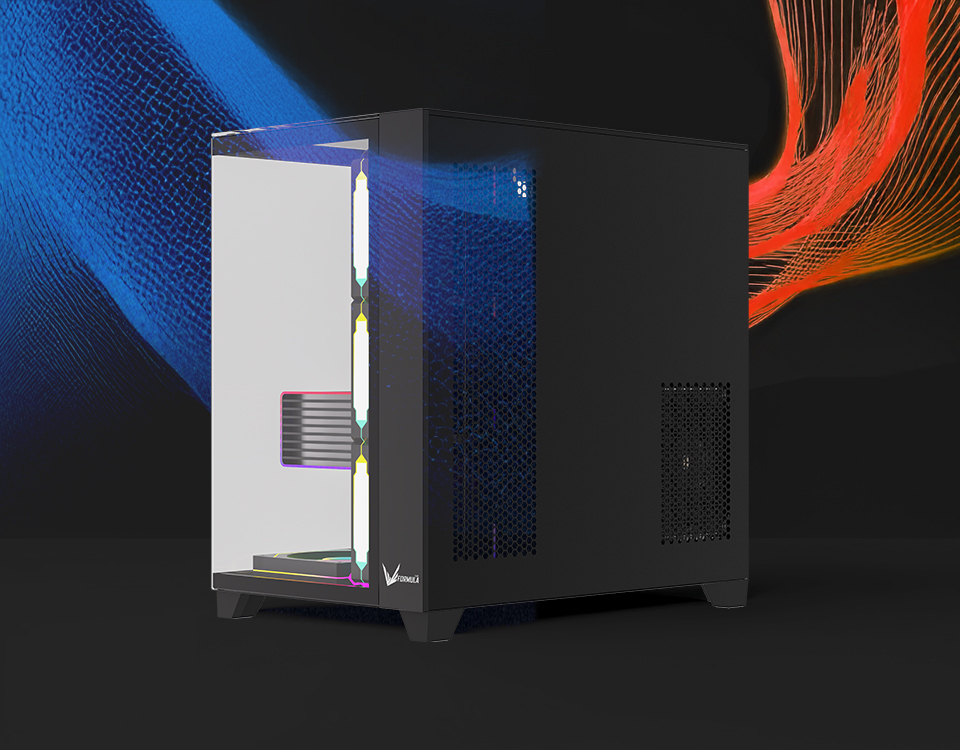

– Effective Heat Dissipation System
– Flexible Configuration

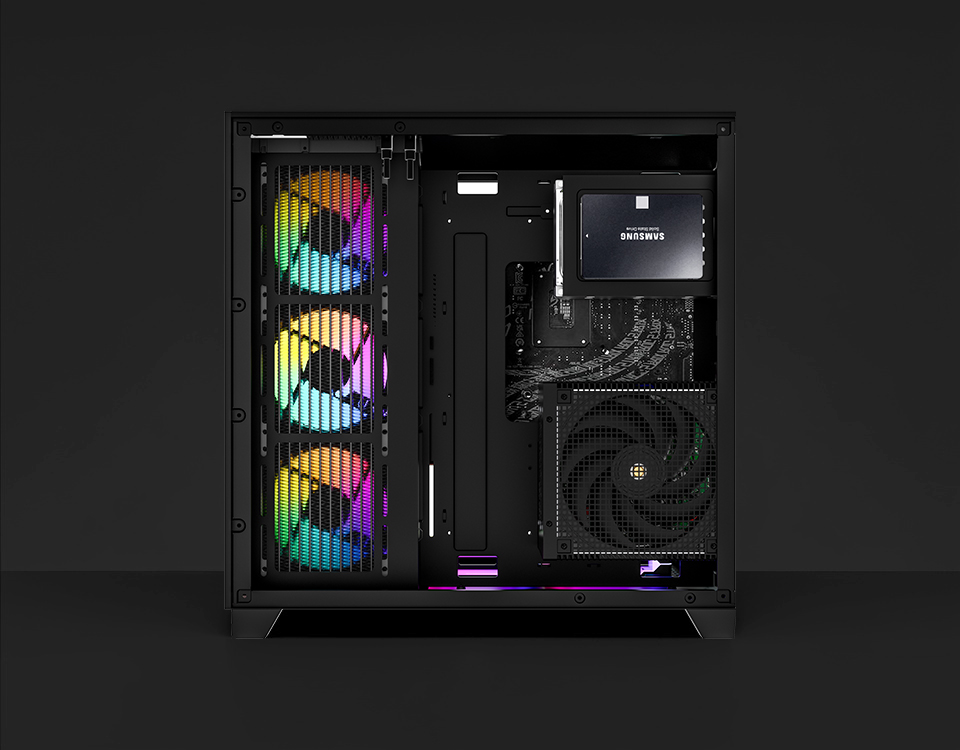

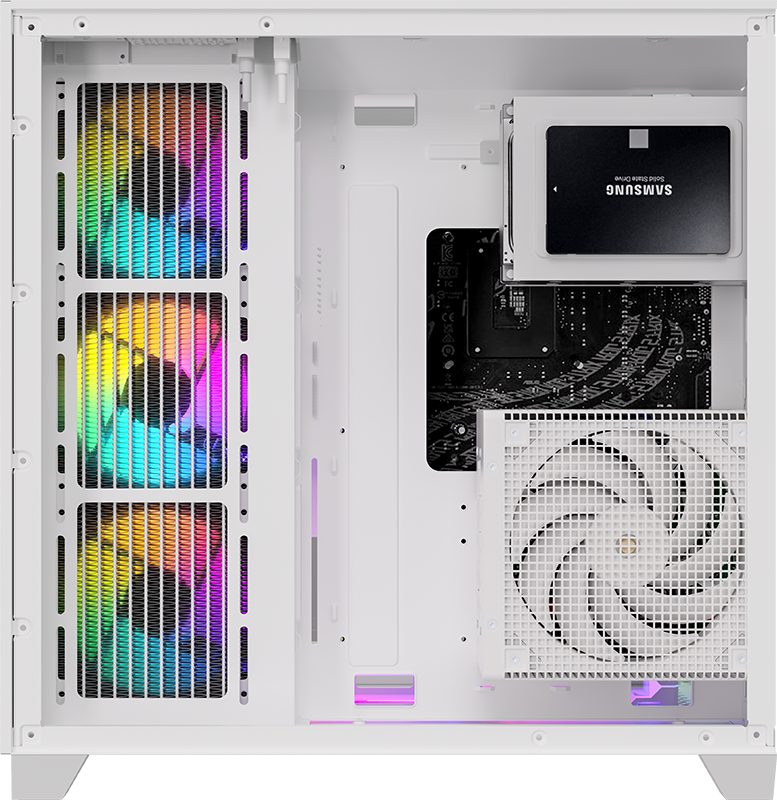

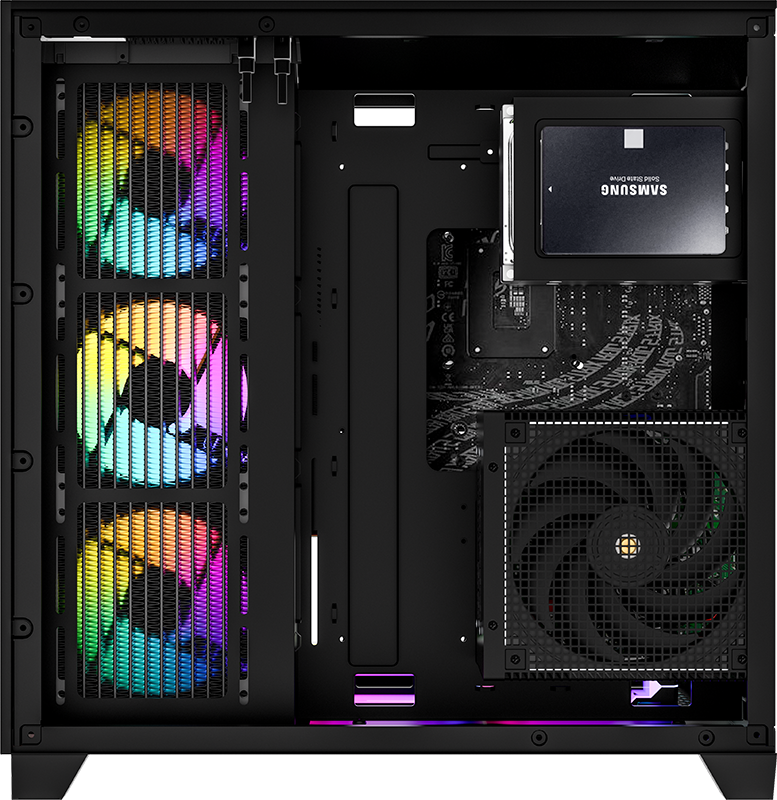

– Intelligent storage for HDD and cable management solution
– New generation I/O Ports with Type C equipped.

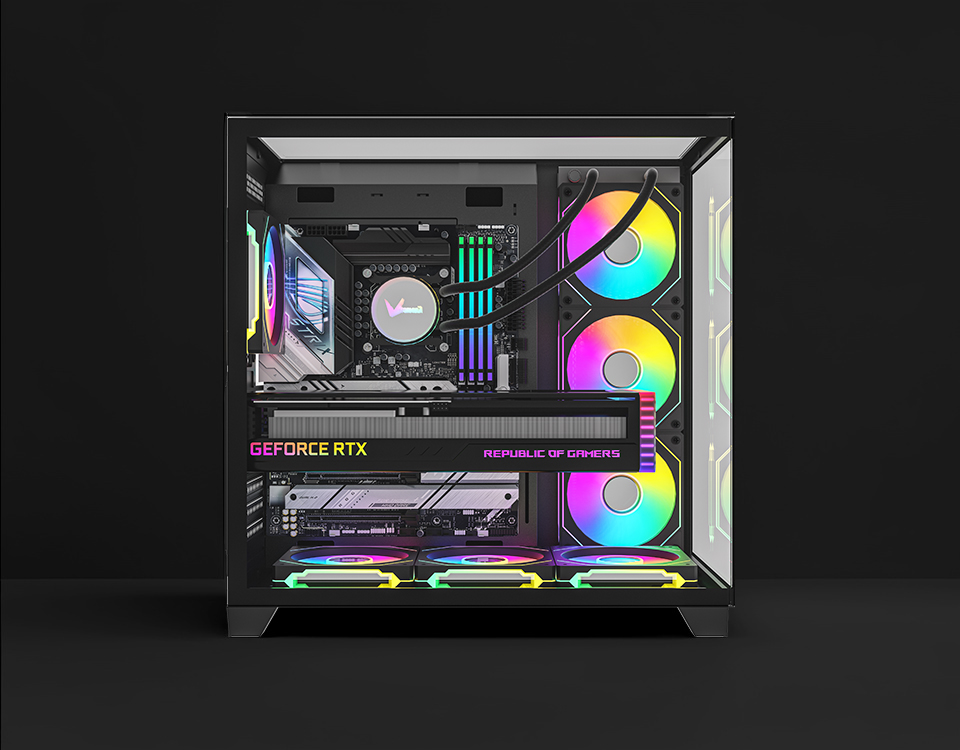

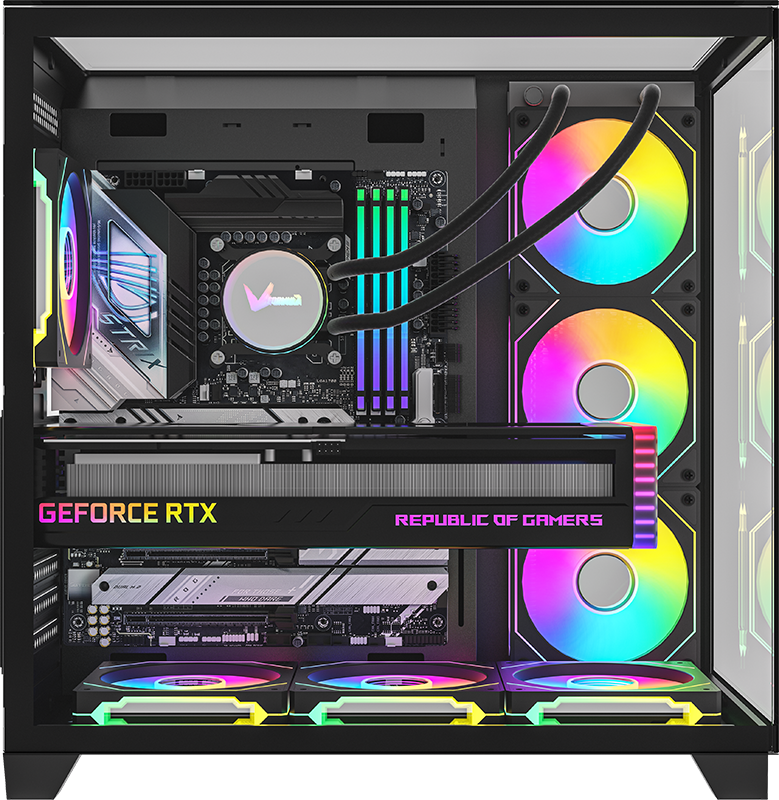

The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

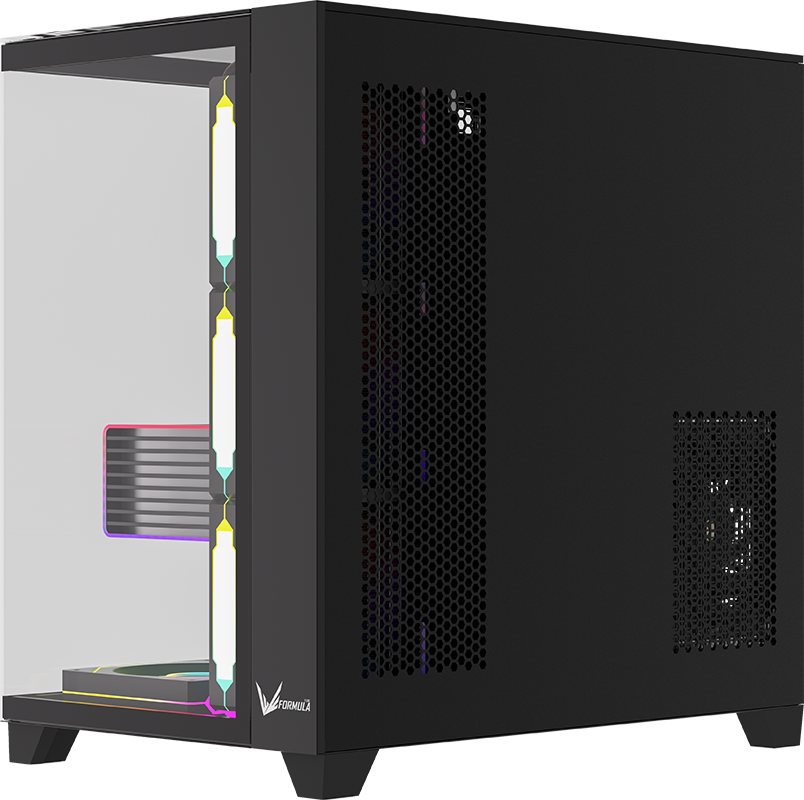

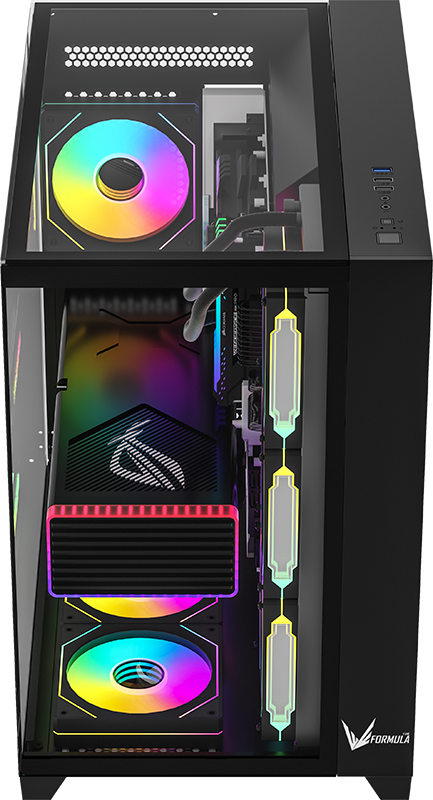

Black

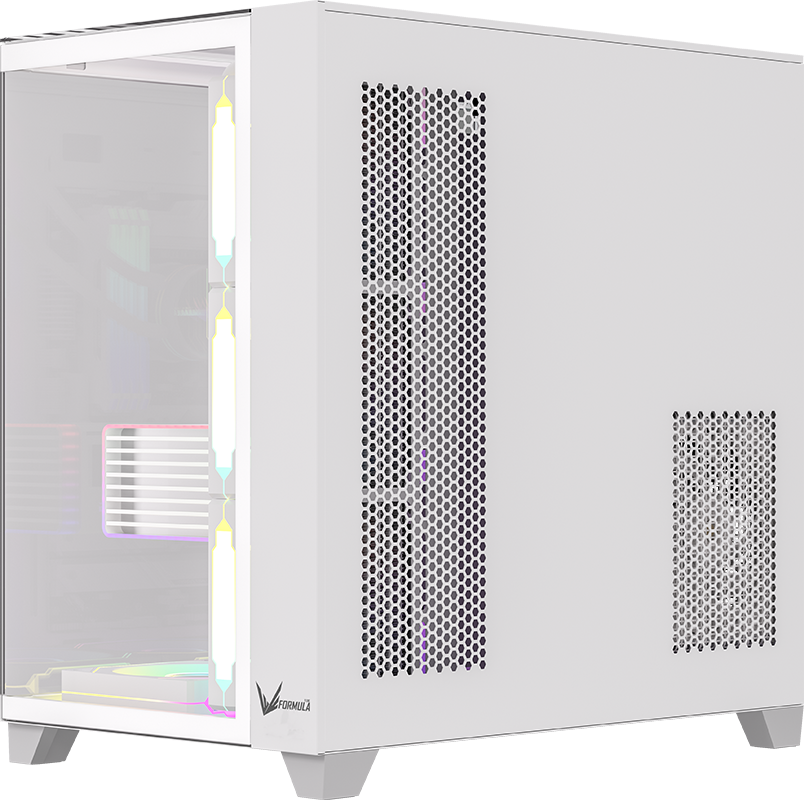

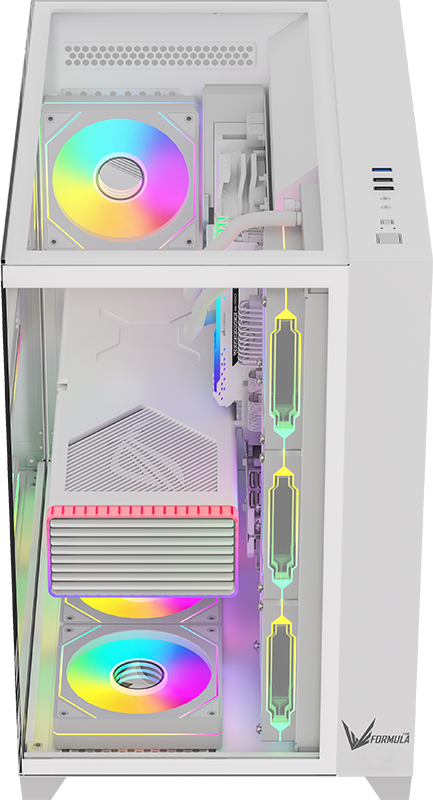

White
section-0 section-1 section-2 section-3 section-4 section-5

Specifications

  • Model CRYSTAL Z9 | CRYSTAL Z9 FLOE
    Case Type Mid Tower
    Color Black | White
    Body Material SPCC
    Steel Thickness 0.6mm
    Motherboards ATX / micro ATX / mini-ITX
    Case Dimensions 425 x 280 x 439mm
    3.5” Drive Bays 2
    2.5” Drive Bays 1

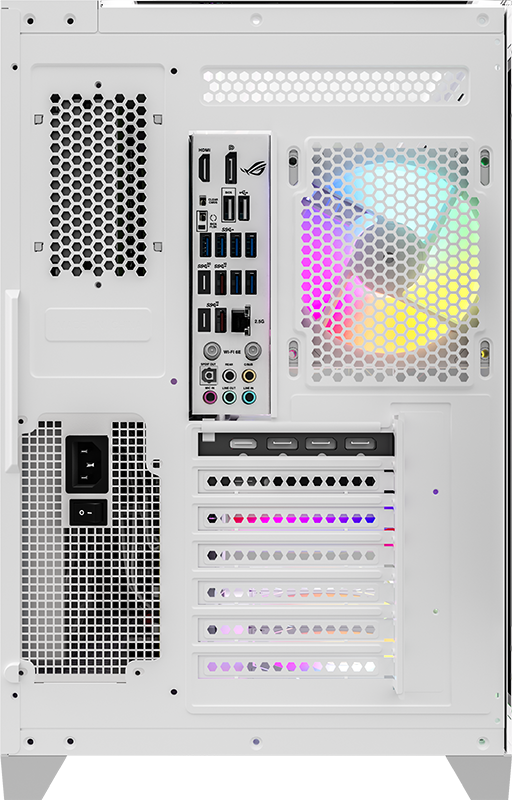

    Expansion Slots 7
    GPU Clearance Supports GPU up to 410mm
    CPU Cooler Clearance Supports CPU cooler up to 165mm
    I/O Ports TYPE-C x 1，USB3.0 x 2, HD AUDIO,MIC
    Power Supply ATX PSU

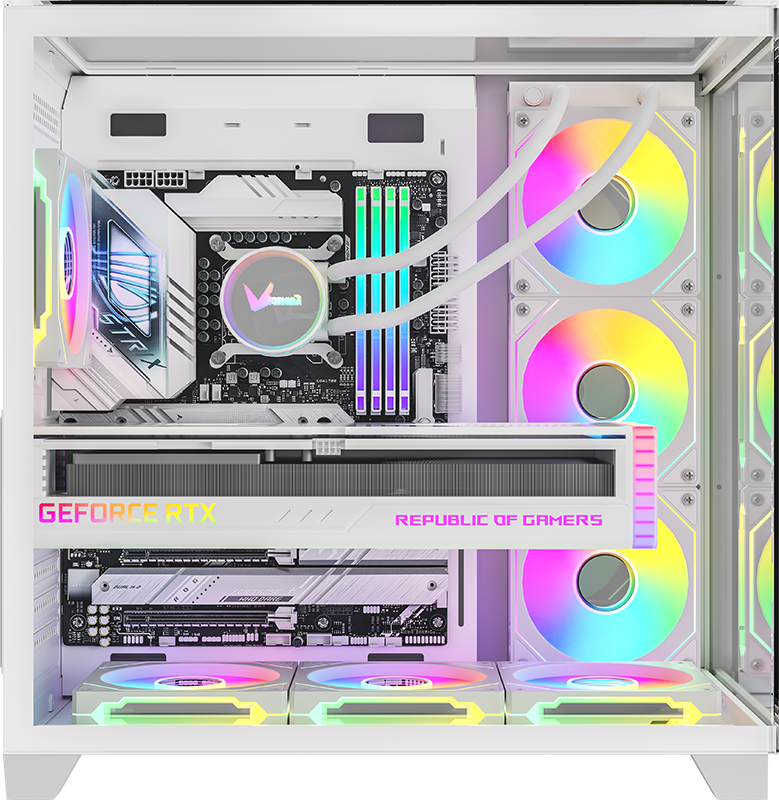

    Liquid Cooling Right side: 360mm Max.
    Bottom: 360mm Max.
    Air Cooling CRYSTAL Z9
    Bottom: 3 x 120mm Max.
    Right Side: 3 x 120mm Max.
    Rear: 1 x 120mm Max.
    CRYSTAL Z9 FLOE
    Bottom:3 x 120mm FLOE 12BK/WH ARPW (Included)
    Right Side: 3 x 120mm FLOE 12BK/WH ARPW (Included)
    Rear: 1 x 120mm FLOE 12BK/WH ARPW (Included)
