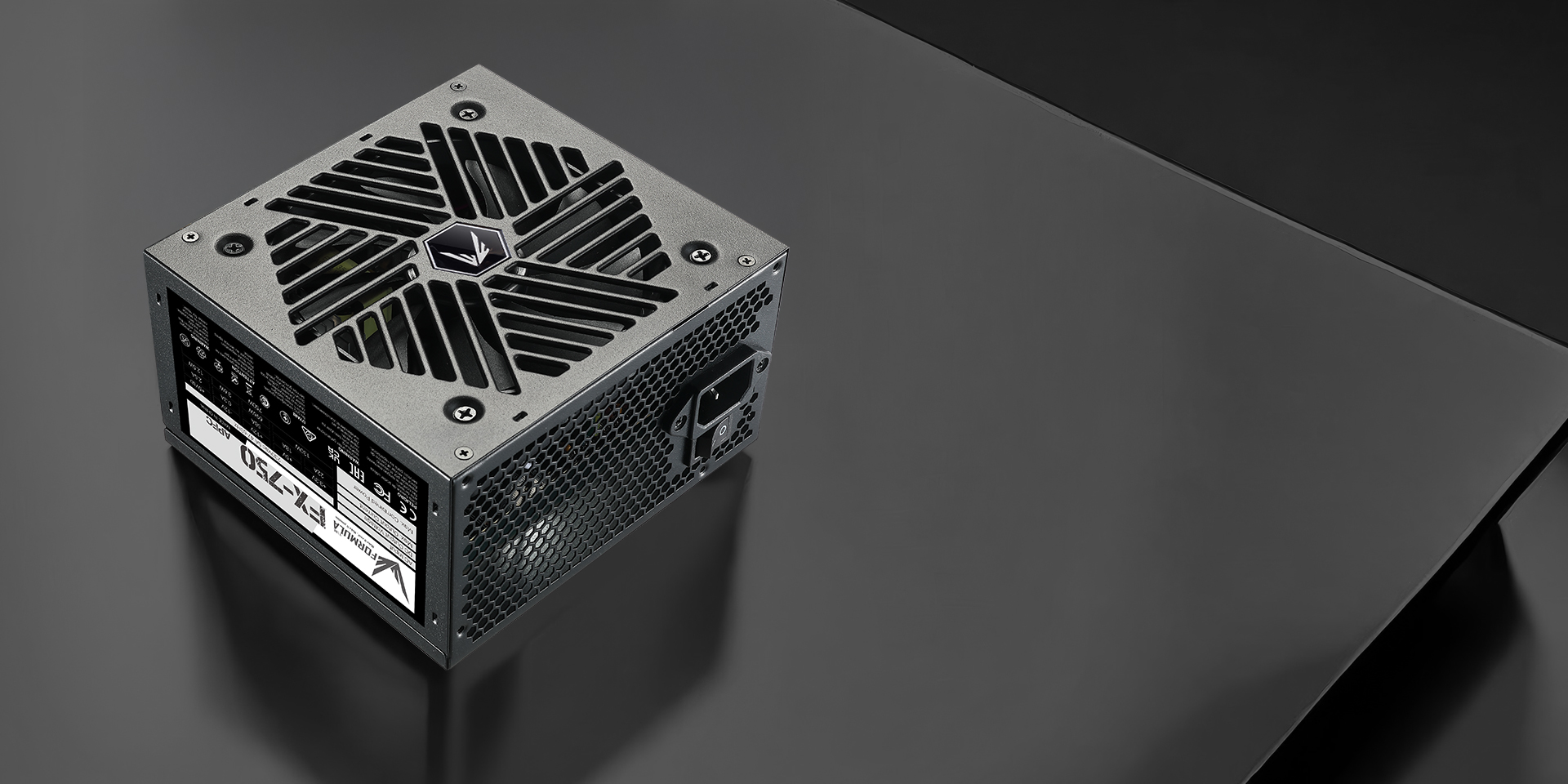

FX-750

• Top choice for budget-conscious beginners in system building.
• Compatible with ATX 12V 2.3
• The enhanced transformer enables robust support for heavy 12V-loaded systems.
• The robust single +12V rail provides a compatible DC output
• Quiet 12cm fan with finely-tuned thermal fan speed management for reduced noise.
• OPP/OVP/UVP/SCP/SIP electrical protection included
• Incorporates built-in APFC (Active Power Factor Correction) with rates exceeding 0.9
• Meet 80+ Efficiency

section-0 section-1 section-2 section-3

Specifications

  • AC INPUT
    230Vac 4A 47-63Hz
    DC OUTPUT
    +3.3V +5V +12V -12V +5VSB
    22A 18A 58A 0.3A 2.5A
    130W 130W 696W 3.6W 12.5W
    TOTAL COMBINE POWER
    750W
  • Cable SPEC 20+4 PIN 18AWG exposed length (500mm) x1
    4+4PIN 18AWG exposed length (550mm) x1
    SATA 18AWG exposed length (350mm)+SATA(150mm)+PATA(150mm) x2
    SATA 18AWG exposed length (350mm)+SATA(150mm)+SATA(150mm)+PATA(150mm) x1
    PCIe 6+2P 18AWG exposed length (400mm)+PCIe 6+2P(150mm) x1
