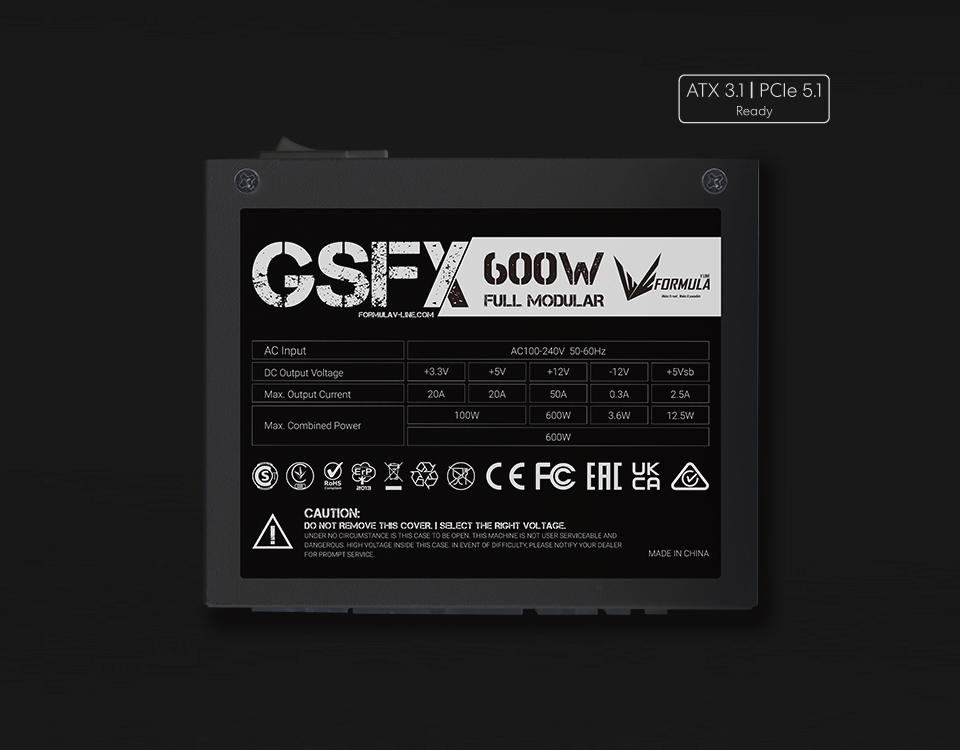

GSFX-600

The GSFX series power supplies feature a fully modular design for better cable management and airflow, along with an elegant casing for improved ventilation. With Japanese capacitors, 80Plus Gold efficiency, and ATX 3.1 & PCIe 5.1 compatibility, they offer reliable performance and robust safety features. The power supplies also provide sufficient cable length and connectors for versatility.

– The fully modular design enables streamlined cable management and enhanced airflow
– Japanese Capacitor
– ATX 3.1 & PCIe 5.1 Ready Compatible
– 80Plus Gold Efficiency – Reliable safety protection, OVP, UVP, OPP, SCP
– Elegant and enhanced airflow casing design
– Sufficient power cable length and connectors.

section-0 section-1 section-2 section-3 section-4 section-5

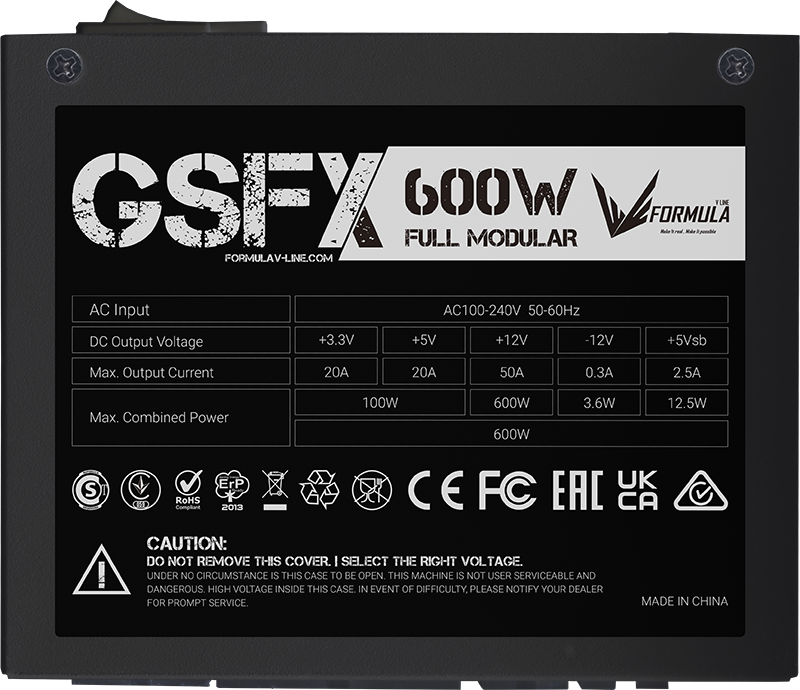

Specifications

  • AC INPUT
    AC100-240V 50-60Hz
    DC OUTPUT
    +3.3V +5V +12V -12V +5VSB
    20A 20A 50A 0.3A 2.5A
    100W 600W 3.6W 12.5W
    TOTAL COMBINE POWER
    600W
  • Cable SPEC (18+10)P To 20+4PIN(450mm) x1
    8P To P8(4+4)/(500+150mm) x2
    8P To (6+2)P To (6+2)P/450mm+150mm x2
    6P To SATA+SATA+SATA/450+150+150mm x2
    6P To Molex+Molex+Molex/450+150+150mm x1
    PCIe 5.1 H++ 12V-2X6 12VHPWR 16 Pin (450mm, 600W) x1
