MANA DYNAMIC

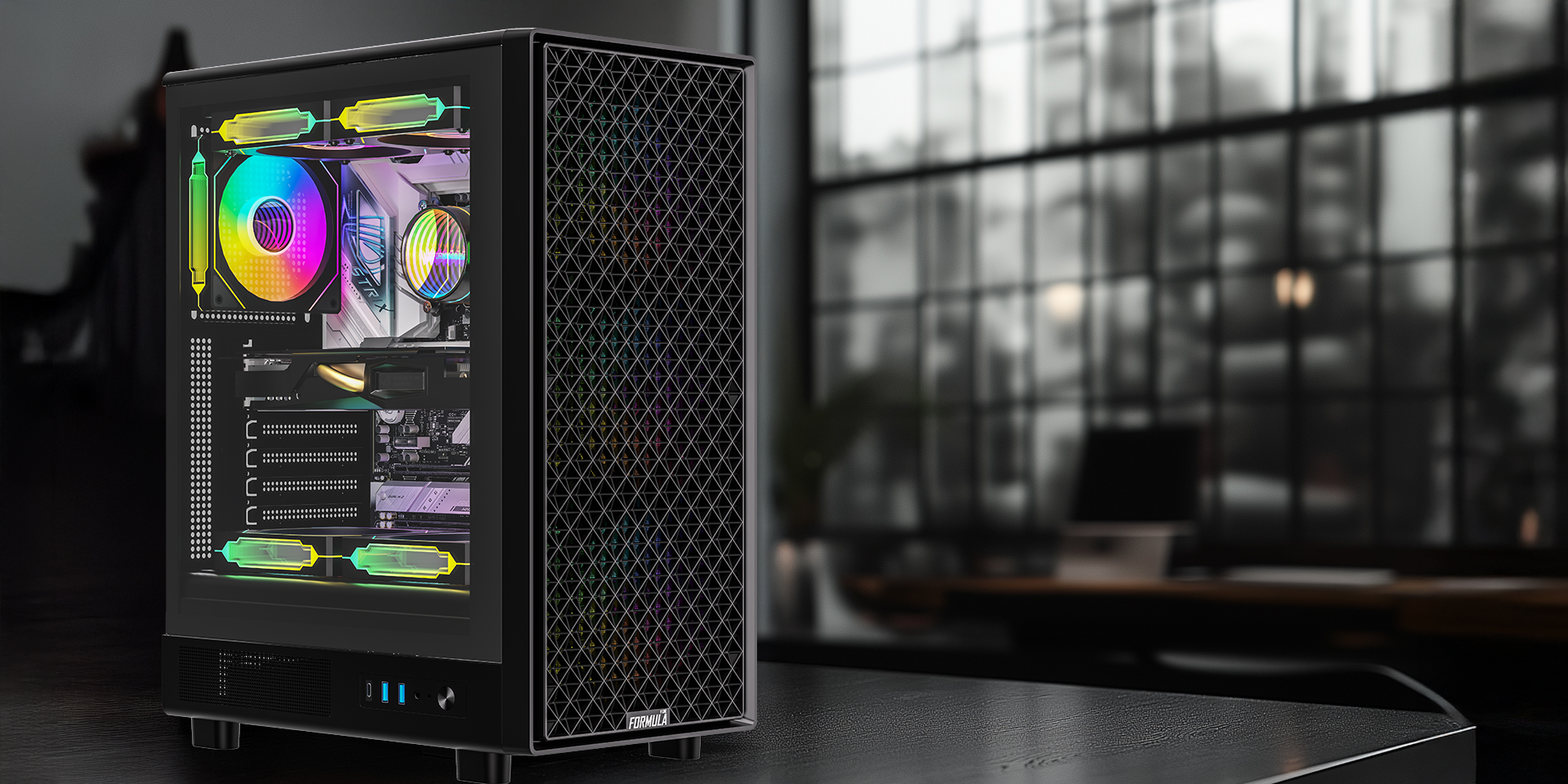

The Mana Dynamic computer case combines a distinctive mesh front panel with enhanced airflow to support for high-end components, making it ideal for powerful and visually appealing builds. Its modern I/O connectivity and optimized storage layout enhance user convenience and performance potential.

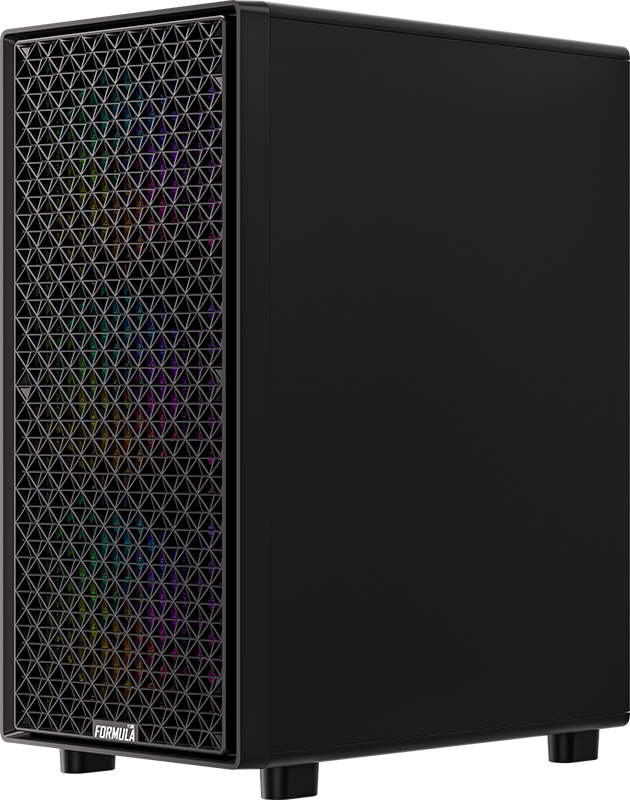

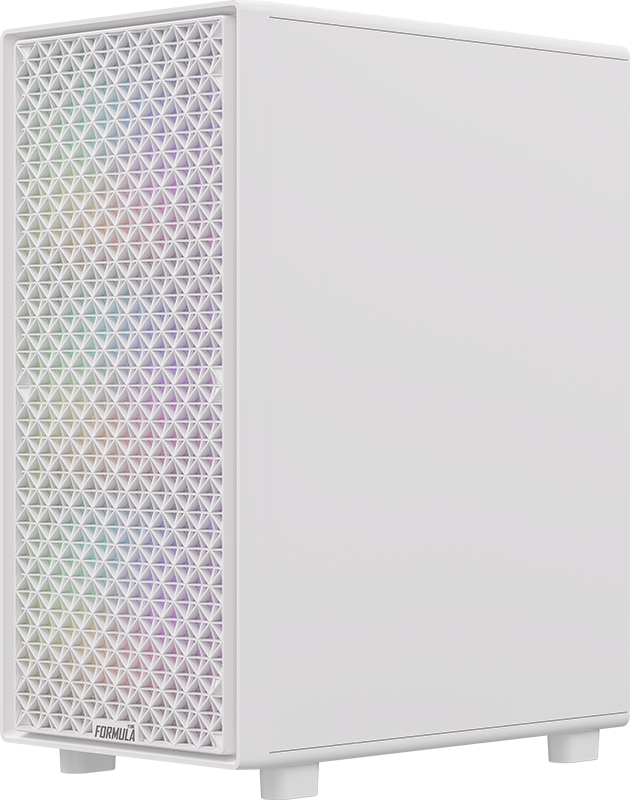

Distinctive Front Mesh Design for Enhanced Airflow:

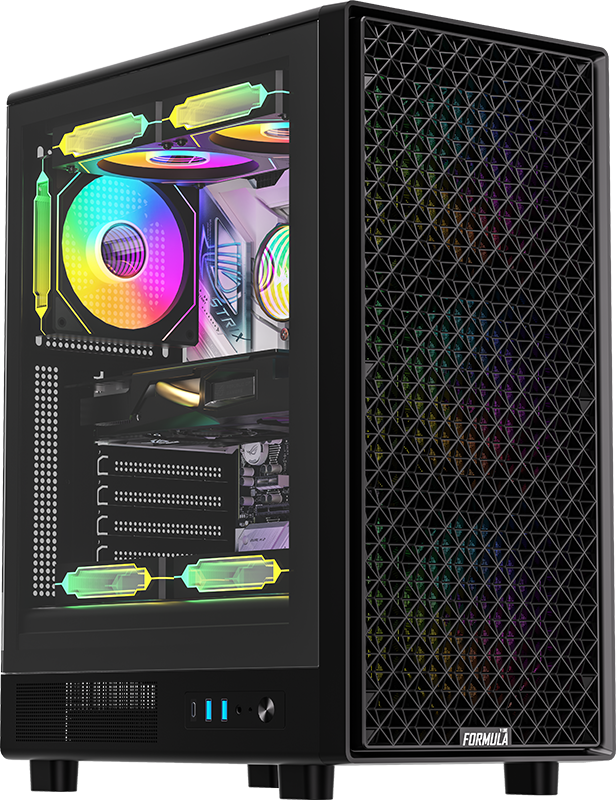

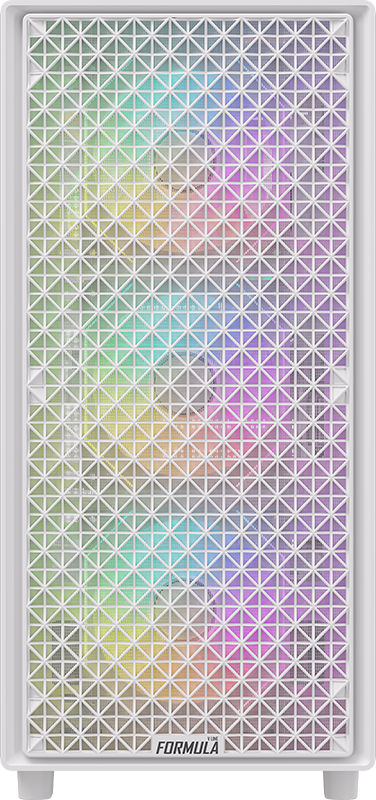

The case features a unique front mesh panel that not only provides a modern aesthetic but also significantly improves airflow, keeping components cool.

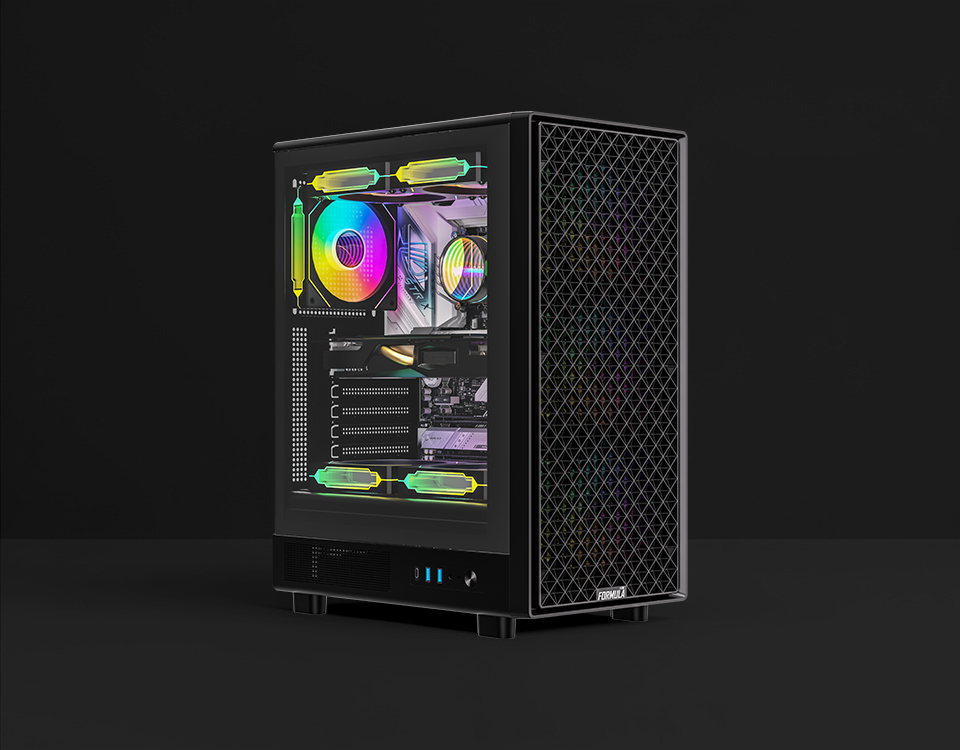

Versatile Cooling Options with Pre-Installed Fans:

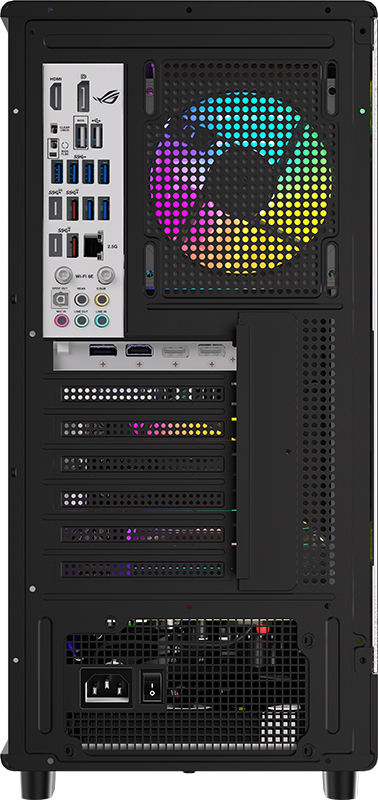

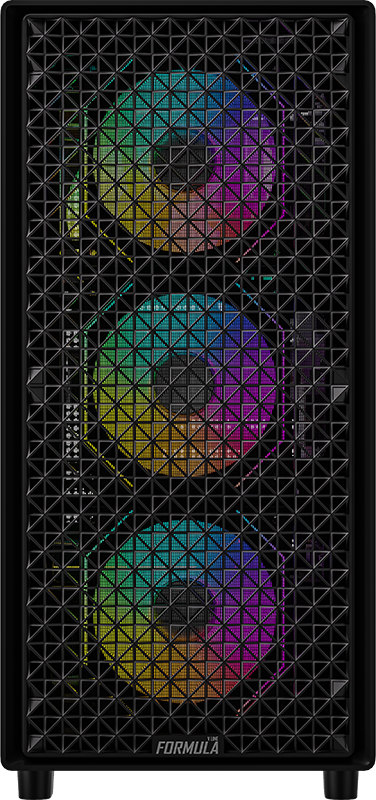

It comes with four pre-installed fans (three in the front and one at the rear) and supports additional fans and a 240mm top liquid cooler for comprehensive cooling capabilities.

Spacious Interior for High-End Components:
The case supports ATX and Micro-ATX motherboards, 310mm graphics cards, and CPU coolers up to 180mm, providing ample room for powerful hardware.

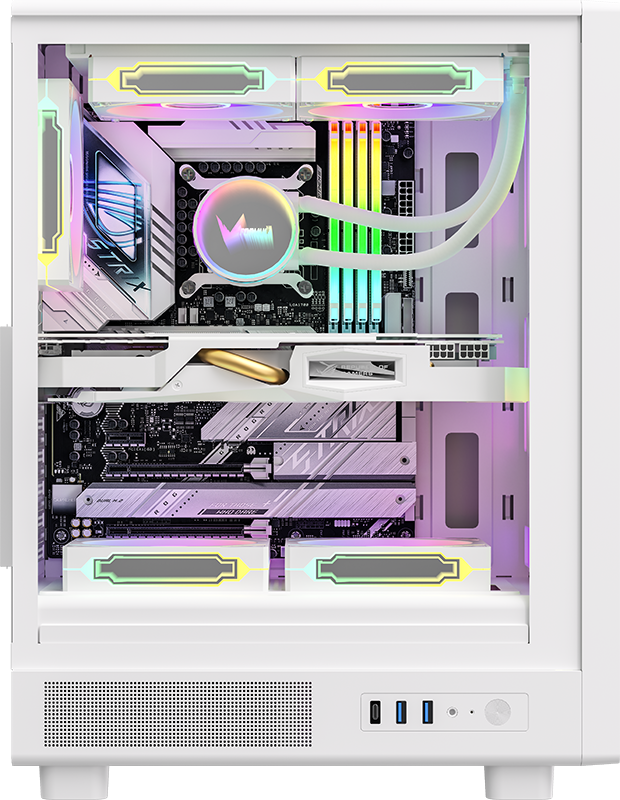

Modern Connectivity with Front I/O Panel:
Equipped with a USB Type-C port, two USB 3.0 ports, and HD audio, the front I/O panel offers convenient access to essential connectivity.

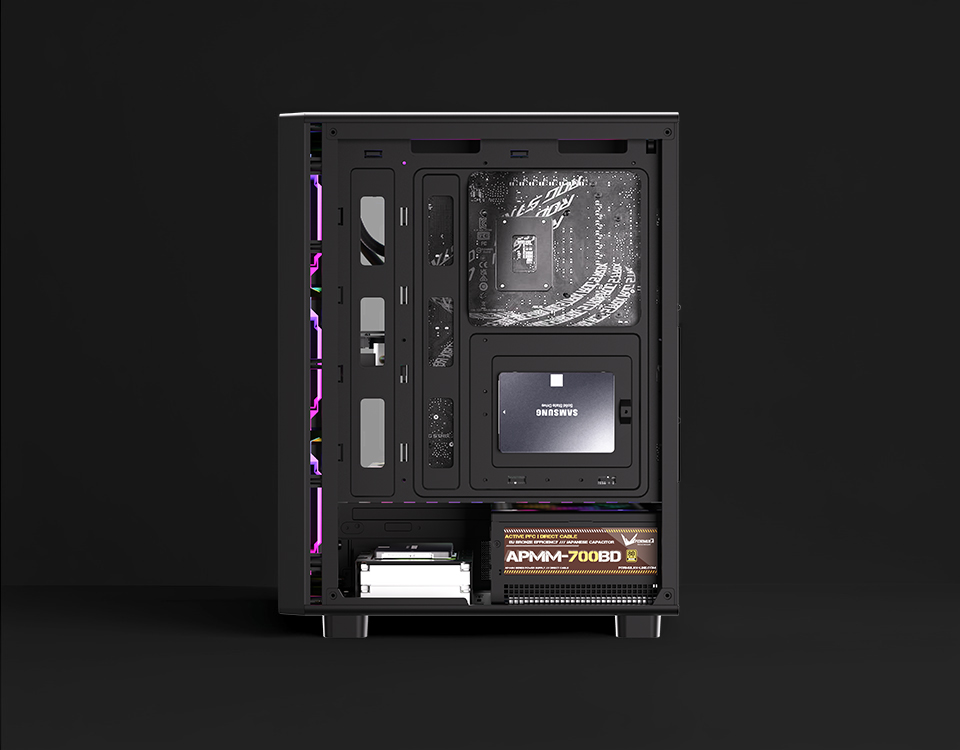

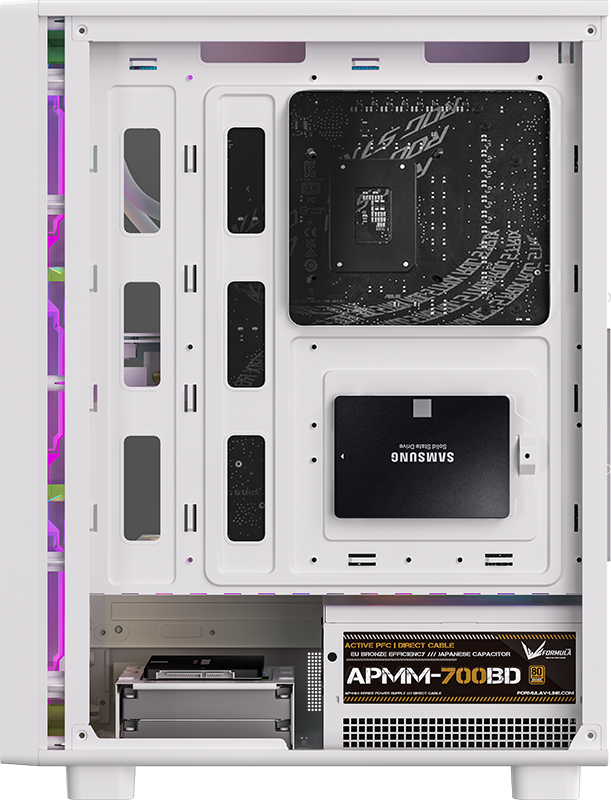

Optimized Storage Support:

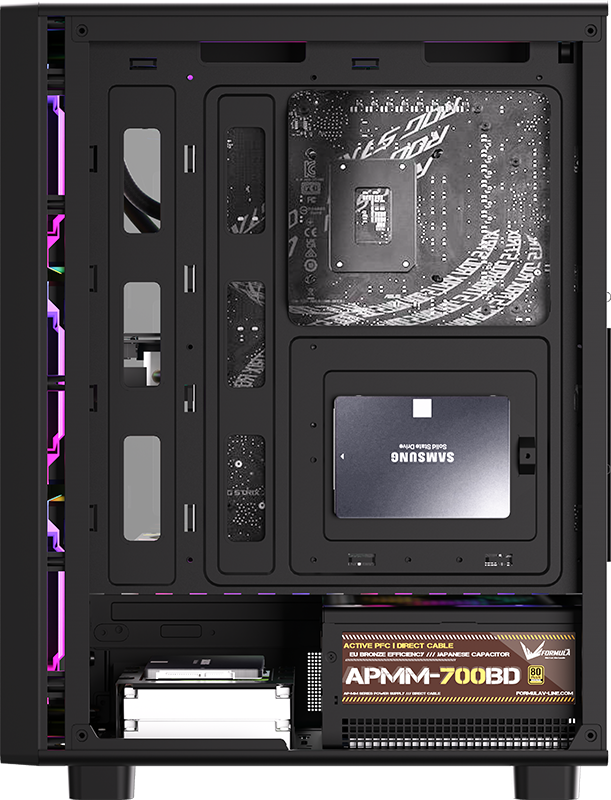

It includes drive bays for one 3.5″ HDD and one 2.5″ SSD, providing essential storage options for modern builds.

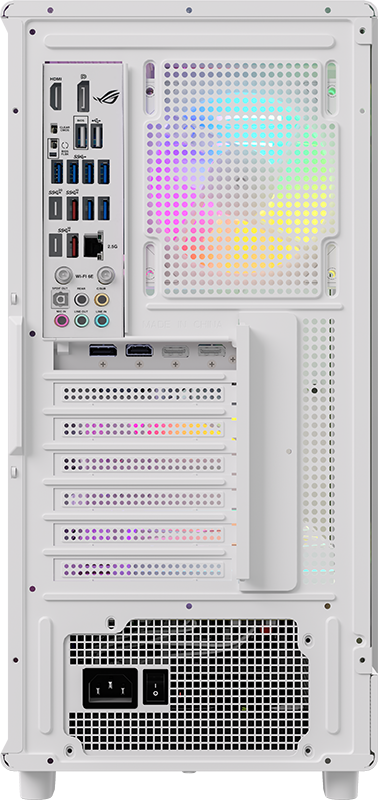

The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

section-0 section-1 section-2 section-3 section-4

Specifications

  • Model MANA DYNAMIC
    Case Type Mid Tower

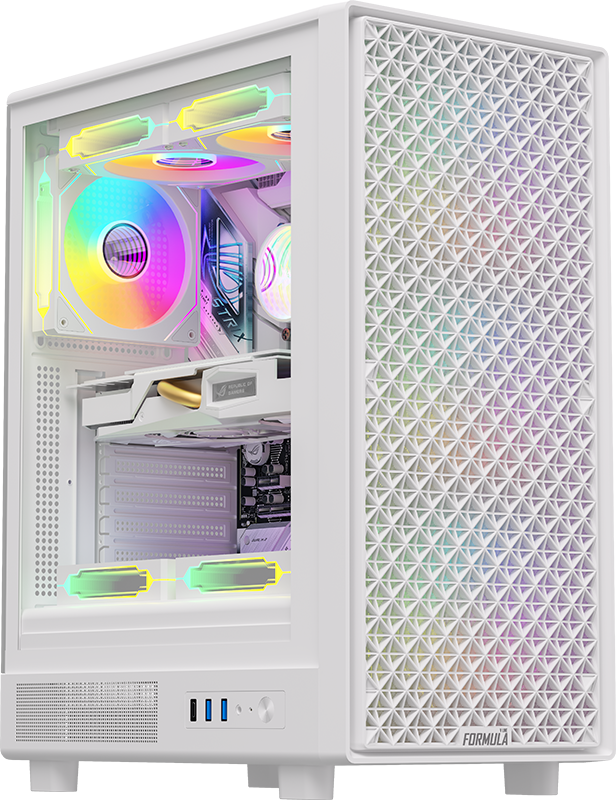

    Color Black | White
    Body Material SPCC
    Steel Thickness 0.5mm
    Motherboards ATX / micro ATX / mini-ITX
    Case Dimensions 330 x 218 x 445mm
    3.5” Drive Bays 1
    2.5” Drive Bays 1
  • Expansion Slots 7
    GPU Clearance Supports GPU up to 310mm
    CPU Cooler Clearance Supports CPU cooler up to 180mm
    Air Cooling Front: 3 x 120mm Fans Max.
    Top: 2 x120 or 2 x 140mm Fans Max.
    Rear: 1 x 120mm Fan Max.
    Bottom: 2 x 120mm Fans Max.

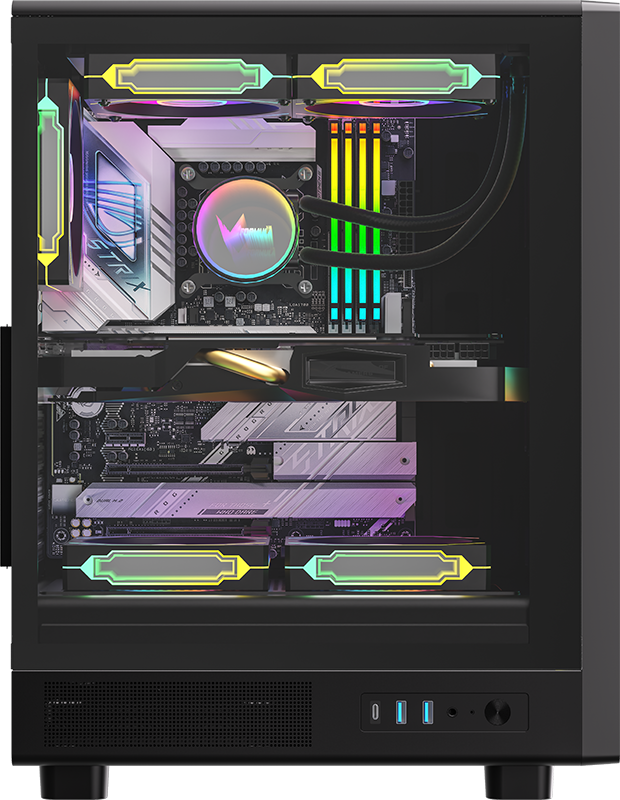

    Liquid Cooling Supports 240mm Max.
    I/O Ports TYPE-C x 1, USB3.0 x 2, HD Audio
    Power Supply ATX PSU
