PSFX-1000
The PSFX series power supplies feature a fully modular design for better cable management and airflow, along with an elegant casing for improved ventilation. With Japanese Capacitor and 80Plus Platinum efficiency, and ATX 3.1 & PCIe 5.1 compatibility, they offer reliable performance and robust safety features. The power supplies also provide sufficient cable length and connectors for versatility.
– The fully modular design enables streamlined cable management and enhanced airflow
– Japanese Capacitor
– ATX 3.1 & PCIe 5.1 ready compatible
– 80Plus Platinum Efficiency – Reliable safety protection, OVP, UVP, OPP, SCP
– Efficient and enhanced airflow casing design
– Sufficient power cable length and connectors






Specifications
-

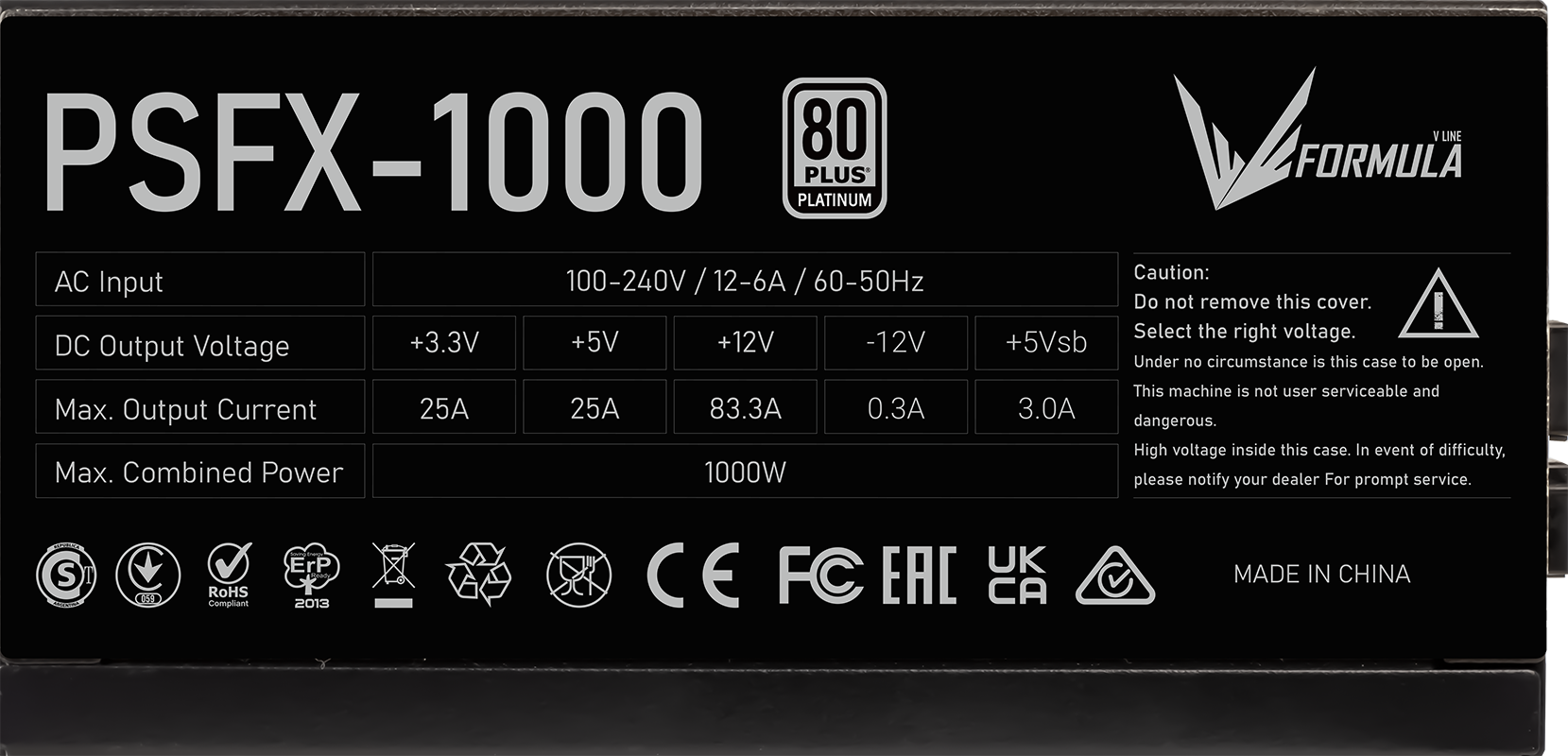

AC INPUT 100-240V / 12-6A / 60-50Hz DC OUTPUT +3.3V +5V +12V -12V +5VSB 25A 25A 83.3A 0.3A 3.0A TOTAL COMBINE POWER 1000W
-
Cable SPEC (18+10)P To 20+4PIN(600MM) x1 8P To P8(4+4)/(700mm) x2 8P To (6+2)P To (6+2)P/550mm+150mm x3 6P To SATA+SATA+SATA/500+150+150mm x2 6P To SATA+SATA+Molex/500+150+150mm x1 6P To Molex+Molex+Molex/500+150+150mm x1 PCIe 5.1 H++ 12V-2X6 12VHPWR 16 Pin (600mm, 600W) x1
Downloads
-
User Manual
