Crystal Z8

Enhanced with an Additional Premium Mesh Panel
— Innovation Embodied: Our Inventive Front Fan Mounts
— Robust and Crystal-Clear Tempered Glass
— Superior Cooling Performance with Dual Chamber Design
— Safeguard Your PC with Integrated Filters
— Flexible Configuration
— Intelligent storage for HDD & cable management solution
— New generation I/O Ports with Type C equipped
The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

Black
White
section-0 section-1 section-2 section-3 section-4 section-5 section-6 section-7

Specifications

  • Model Crystal Z8 Series
    Case Type Mid Tower
    Color Black | White
    Body Material SPCC
    Steel Thickness 0.6mm
    Motherboards ATX / micro ATX / mini-ITX
    Case Dimensions 435 x 230 x 456mm
    3.5” Drive Bays 1
    2.5” Drive Bays 2
    Expansion Slots 7
    GPU Clearance Supports GPU up to 395mm
    CPU Cooler Clearance Supports CPU cooler up to 185mm
    I/O Ports TYPE-C x 1，USB3.0 x 2, HD AUDIO,MIC
    Liquid Cooling Top: Supports 360mm Max.
    Power Supply ATX PSU
  • Air Cooling
    Crystal Z8 Front: 2 x 14cm (optional)
    Top: 3 x 14cm or 3 x 12cm (optional)
    Back: 1 x 14cm or 1 x 12cm (optional)
    Bottom: 3 x 12cm (optional)
    Right side: 2 x 12cm (optional)
    Crystal Z8 COSMIC Front: 2 x 14cm (optional)
    Top: 3 x 14cm or 3 x 12cm (optional)
    Back: 1 x COSMIC 12 FR (Included)
    Bottom: 3 x COSMIC 12 FR(Included)
    Right side: 2 x COSMIC 12 FR (Included)

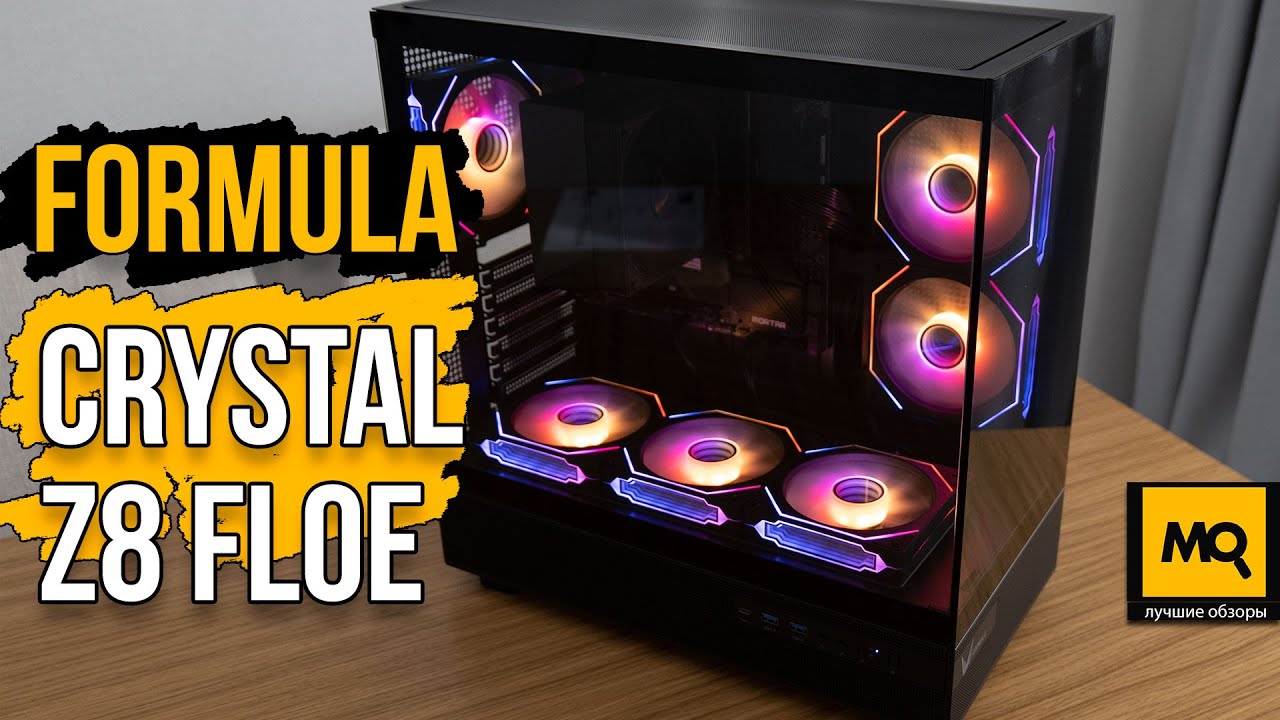

    Crystal Z8 FLOE Front: 2 x 14cm (optional)
    Top: 3 x 14cm or 3 x 12cm (optional)
    Back: 1 x FLOE 12 ARPW (Included)
    Bottom: 3 x FLOE 12 ARPW (Included)
    Right side: 2 x FLOE 12 ARPW (Included)
